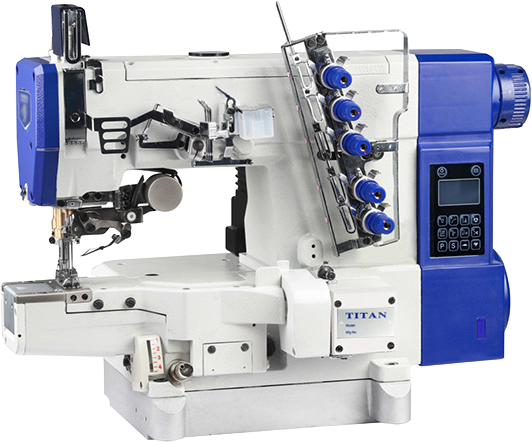

Titan TN-W800D- UT/TC/FL Cylinder Bed Interlock Sewing Machine with Automatic Functions

Titan TN-W800D-UT/TC/FL

Cylinder Bed Interlock Sewing Machine with Automatic Functions

Overview

The Titan TN-W800D-UT/TC/FL is a high-performance, direct-drive cylinder bed interlock sewing machine engineered for precision sewing on tubular and stretch materials. Designed for modern production environments, it combines advanced automation, high-speed capability, and operator-friendly controls to deliver consistent, professional results. Built and tested in Canada, the TN-W800D series is ideal for manufacturers seeking efficiency, clean finishing, and long-term durability.

Key Features

Compact Cylinder Bed Design
The narrow cylinder bed allows precise handling of tubular products and tight sewing areas such as sleeves, cuffs, waistbands, and athletic garments—improving operator control while reducing material distortion.

Direct Drive Servo System
Integrated direct drive motor ensures smooth, low-vibration operation, reduced noise, faster response, and lower energy consumption compared to traditional clutch motors.

Automatic Thread Trimming (UT)
Built-in trimming eliminates manual cutting, reduces cycle time, improves efficiency, and delivers a clean, professional finish.

Full Automation Package (UT/TC/FL)
Includes auto foot lifter (FL), top and bottom thread trimming (UT/TC), programmable controls, consistent stitch formation at high speeds, and reduced operator fatigue during extended use.

High-Speed Industrial Performance
Delivers speeds up to 5,500 stitches per minute, stable stitching on light to medium materials, and excellent elasticity for stretch fabrics.

Applications

Ideal for knitwear and activewear, underwear and lingerie, elastic attaching, hemming and binding, and coverstitch finishing on stretch materials.

Technical Specifications

Model: TN-W800D-UT/TC/FL
Machine Type: Cylinder Bed Interlock (Coverstitch)
Drive System: Direct Drive Servo Motor
Max Speed: Up to 5,500 SPM
Cylinder Diameter: ~40 mm class
Stitch Type: Interlock / Coverstitch
Thread Trimming: Top & Bottom (UT/TC)
Auto Foot Lifter: Included (FL)
Lubrication: Automatic
Needle Gauge: Multiple options available

Available Configurations

UT – Under thread cutter | TC – Top thread cutter | FL – Auto foot lifter

What’s Included

• Fully laminated plywood tabletop with rubber trim
• Titan Deluxe 2.0 T-stand with locking wheels
• Drawer with accessories (oil, tools, manuals)
• LED light (TN-30)
• Full technical support (phone, email, video)

The Titan Advantage

Every TN-W800D-UT/TC/FL is assembled, calibrated, and fully tested in Canada to ensure reliable, production-ready performance right out of the box.
