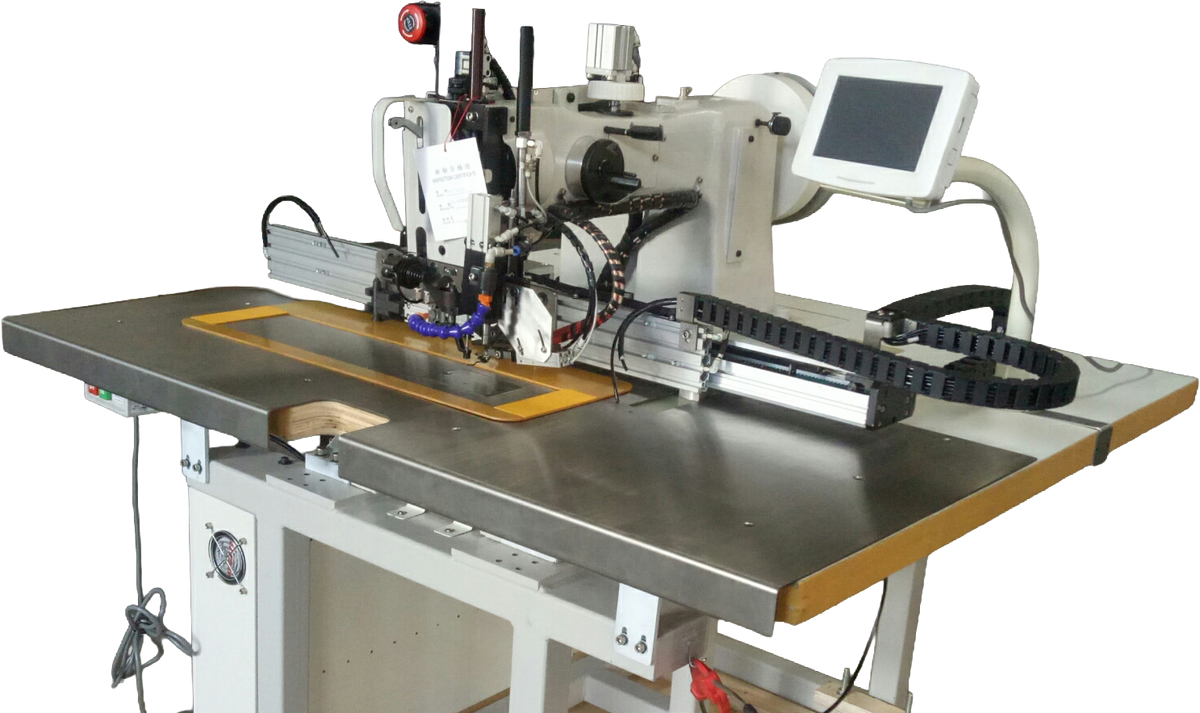

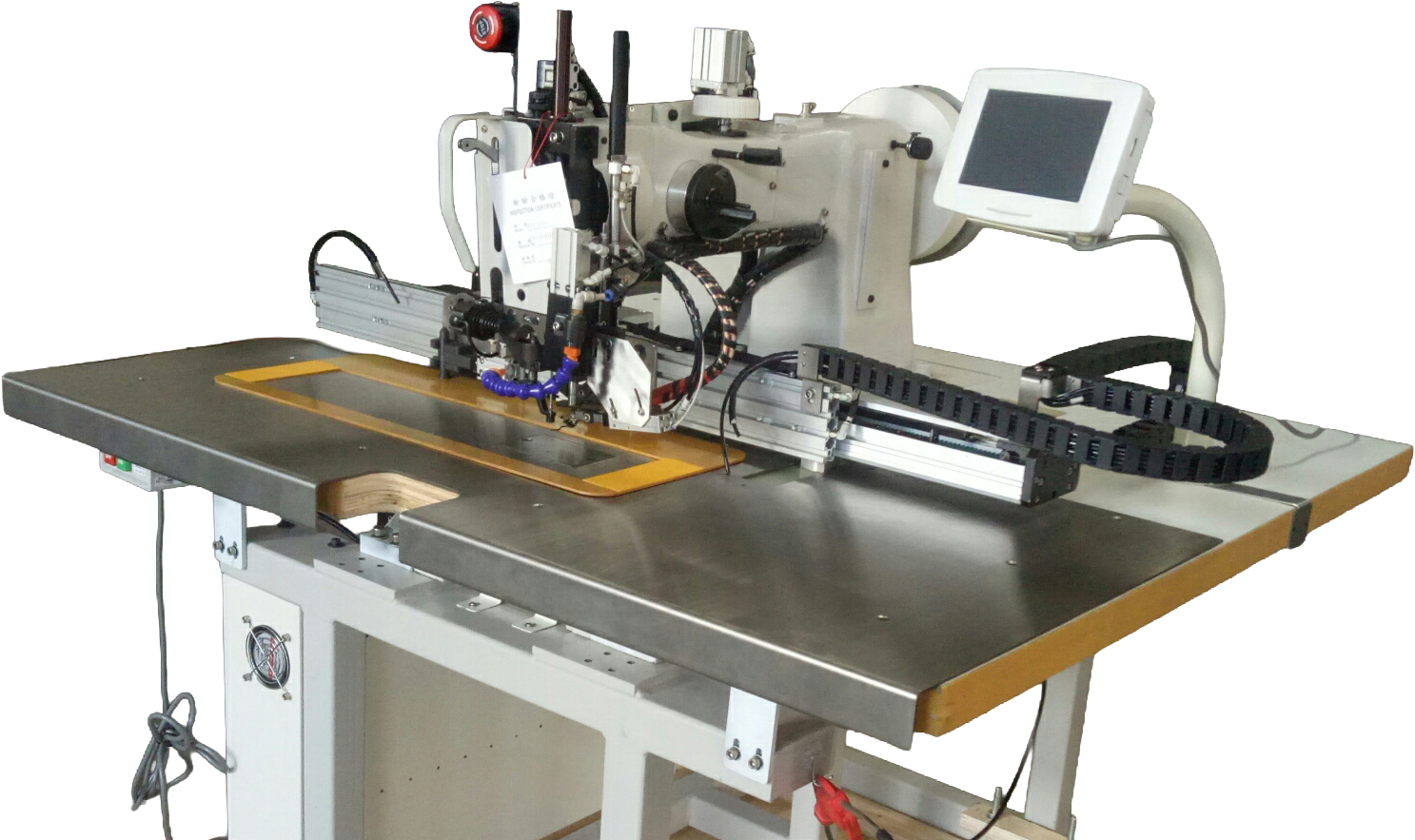

Titan TN-733A-H3020/5020

Titan TN-733A-H3020/5020

Extra Heavy-Duty Programmable Pattern Sewing Machine

Extreme Strength. Absolute Precision. Built for Structural Sewing Applications.

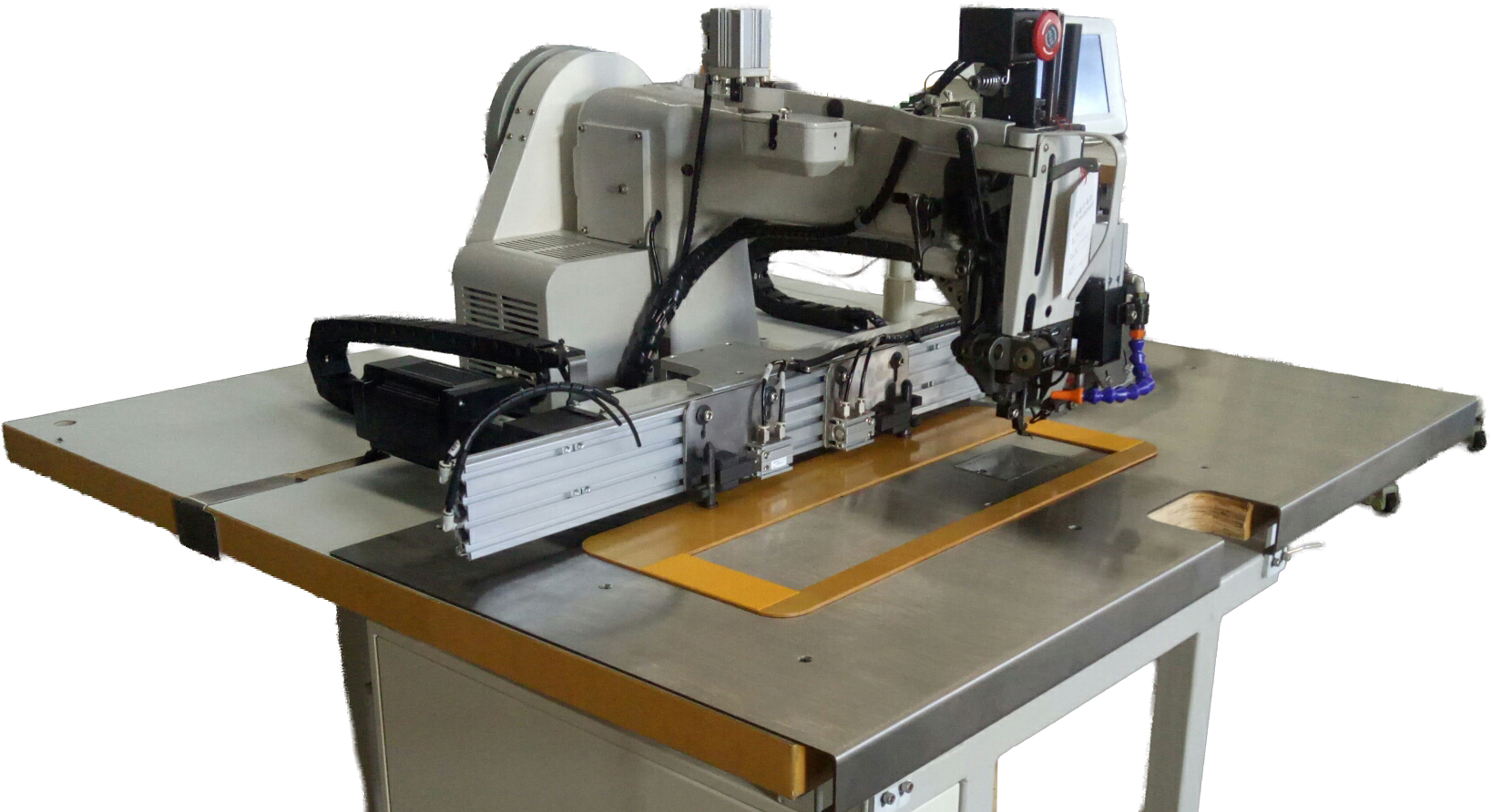

The Titan TN-733A-H3020/5020 is an extra heavy-duty programmable pattern sewing machine engineered for high-load, reinforcement-intensive sewing operations. Built on a proven industrial platform, this machine is designed to deliver consistent, repeatable stitch patterns across thick, multi-layer materials where seam integrity is critical.

With a large 300 × 200 mm (or 500 x 200) sewing field, high-capacity hook system, and advanced programmable control, the TN-733A-H3020/5020 is the ideal solution for manufacturers producing webbing assemblies, lifting slings, harnesses, and other safety-rated textile products.

Key Features

Large 300 × 200 mm (or 500 x 200) Sewing Area

Provides generous working space for reinforcement stitching, complex patterns, and large material assemblies—ideal for webbing and load-bearing applications.

Extra Heavy-Duty Sewing Performance

Built to handle thick, dense, and multi-layer materials including webbing, canvas, synthetics, and heavy technical textiles without compromising stitch quality.

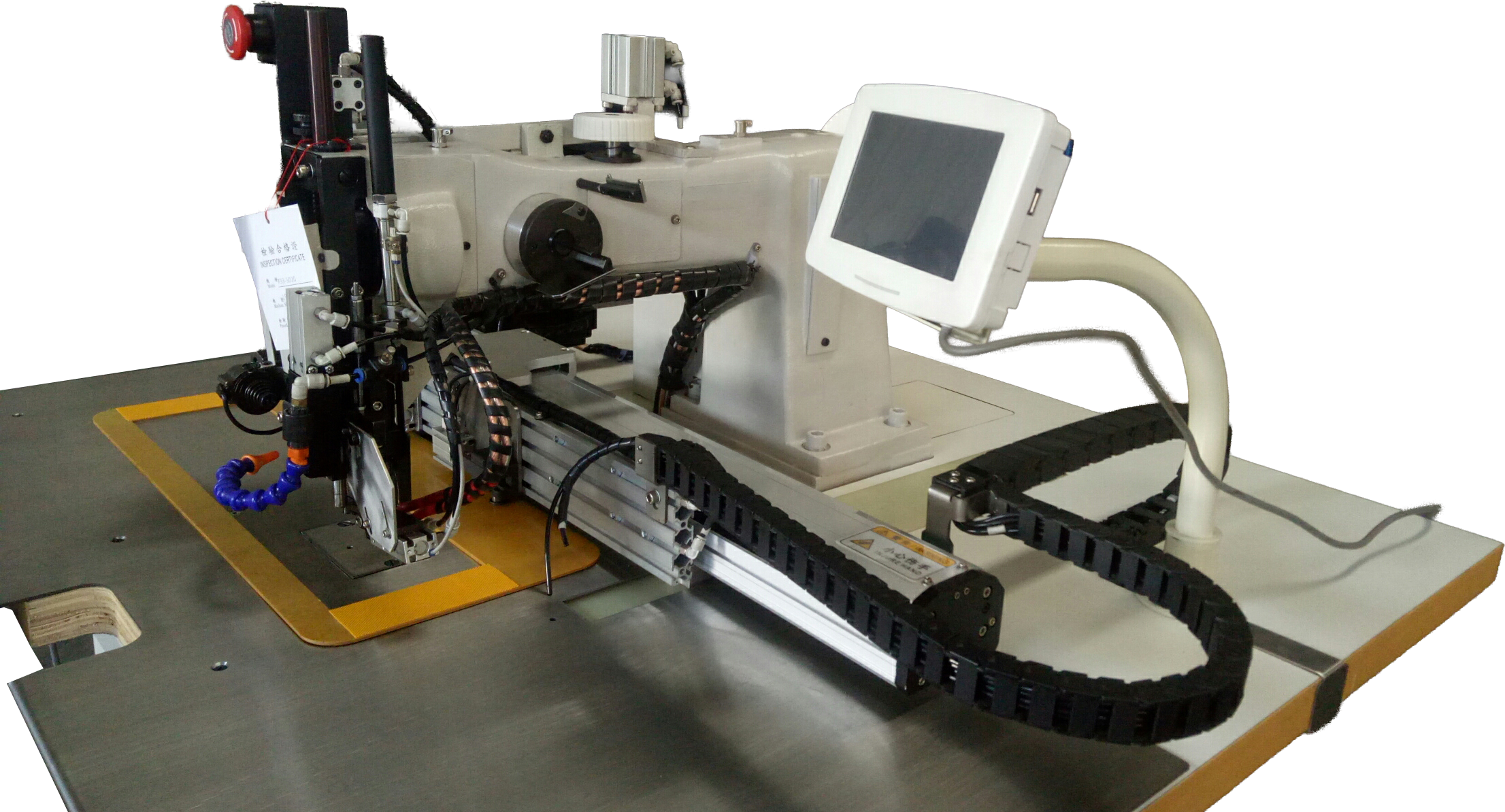

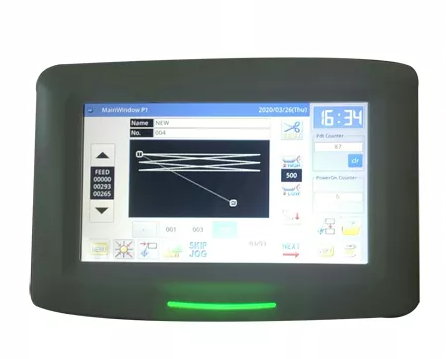

Programmable Pattern Control

Easily create, store, and recall stitch patterns to ensure consistent production. Eliminates operator variability in critical reinforcement applications.

Super Large Shuttle Hook System

Supports heavy thread sizes and extended sewing cycles, reducing bobbin changes and increasing production efficiency.

Heavy Thread Capability

Designed to run large thread sizes (up to approx. #415 depending on application), ensuring strong, secure seams for structural products.

Pneumatic Presser Foot Operation

Delivers consistent pressure and smooth feeding across uneven or thick assemblies, improving stitch consistency and material control.

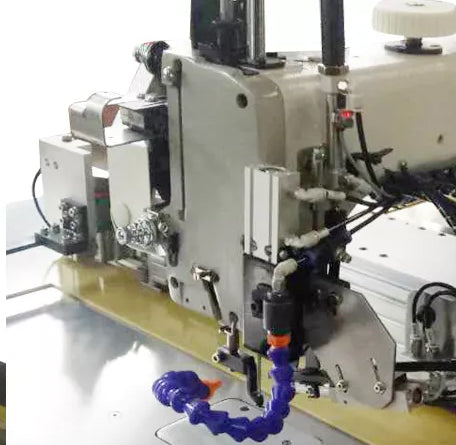

Optional Hot Knife Thread Trimming

Cleanly seals thread ends during trimming—ideal for synthetic webbing and strap production where fraying must be eliminated.

Technical Specifications

• Model: Titan TN-733A-H3020/5020
• Machine Type: Programmable Pattern Sewing Machine
• Sewing Area: 300 × 200 mm (500x200mm)
• Max Sewing Speed: Up to ~500 RPM (material dependent)
• Max Stitch Length: Up to 12 mm
• Thread Range: Approx. #138 – #415 (application dependent)
• Needle System: Heavy-duty industrial system (typically 230–330 range)
• Hook Type: Super Large Shuttle Hook
• Drive System: Industrial Servo Motor (~750W class)
• Presser Foot Lift: Pneumatic
• Pattern Memory: Multi-pattern programmable storage
• Power Requirement: 220V Single Phase (110V possible)

Applications

The Titan TN-733A-H5020 is purpose-built for high-strength, safety-critical sewing applications, including:

• Cargo control and tie-down straps
• Lifting slings and rigging assemblies
• Fall protection and safety harnesses
• Military and tactical gear
• Marine and industrial textile products
• Heavy-duty bags and reinforcement stitching

Why Titan TN-733A-H5020?

• Delivers repeatable, high-strength stitch patterns
• Handles extreme materials and heavy threads with ease
• Reduces labor variability through programmable automation
• Built for long-term industrial durability
• Ideal for production environments requiring precision and consistency

What’s Included

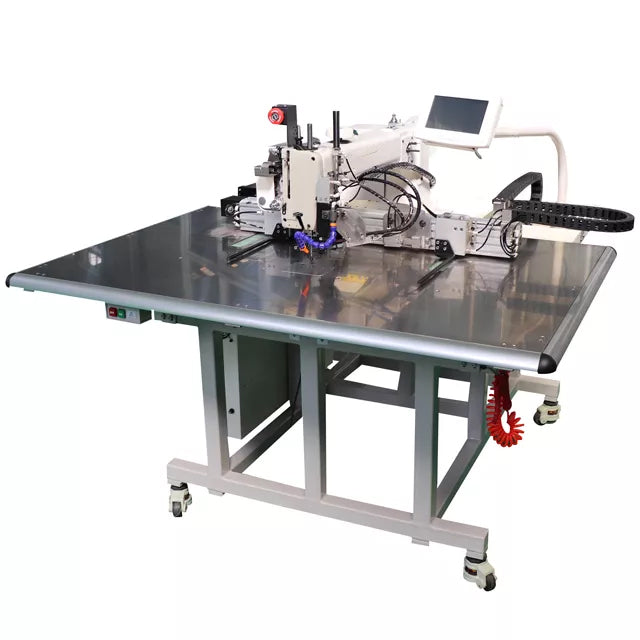

Fully laminated plywood tabletop with rubber trim with reinforced Steel top

Reinforced Steel stand with locking wheels

Drawer with accessories (oil, tools, manuals)

LED light (TN-30)

Full technical support (phone, email, video)

The Titan Advantage

Every TN-733A-H5020 is assembled, calibrated, and fully tested in Canada to ensure reliable, production-ready performance right out of the box.
