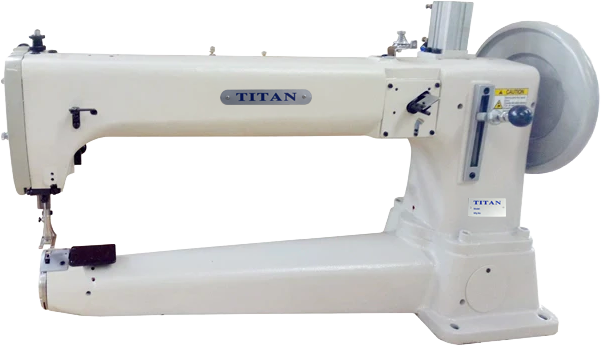

Titan TN-441L-25 Long Arm Cylinder Sewing Machine

Extended Reach. Maximum Control. Built for Large-Scale Leatherwork.

The Titan TN-441L-25 is an extra heavy-duty, long-arm cylinder bed sewing machine engineered for professionals working with large, bulky, and complex materials. Built on the proven 441-class platform, this model features a 25" extended arm, providing dramatically increased workspace and handling capability.

Designed for saddlery, harness production, large leather goods, and industrial textile applications, the TN-441L-25 combines power, precision, and reach—making it the ideal solution for oversized projects where standard machines fall short.

Key Features

25” Extended Long Arm Design

The TN-441L-25 features a full 25-inch arm clearance, allowing operators to easily manage large panels, saddle skirts, harness assemblies, and oversized bags without restriction.

Triple Feed Walking Foot System

Equipped with a compound feed system (needle feed + walking foot + bottom feed), this machine ensures even material feeding and stitch consistency, even across thick, layered, or uneven materials.

Extra Heavy-Duty Sewing Capability

Built to sew thick leather, webbing, canvas, and technical materials, the TN-441L-25 maintains consistent penetration and stitch quality across heavy assemblies up to approximately 3/4" thickness.

Large Barrel Shuttle Hook

The oversized shuttle hook supports heavy thread sizes and reduces bobbin changes—ideal for long production runs and heavy stitching applications.

High Presser Foot Lift

With up to 20–23mm presser foot lift, operators can easily position and remove thick materials without strain or obstruction.

Applications

• Saddlery & equestrian gear
• Harness and tack manufacturing
• Large leather goods & bags
• Upholstery and automotive interiors
• Industrial webbing and safety equipment
• Heavy canvas and technical textiles

Technical Specifications

• Machine Type: Cylinder Arm, 1-Needle Lockstitch
• Arm Length: 25" Long Arm
• Feed System: Compound Walking Foot (Triple Feed)
• Max Sewing Speed: Up to 800 stitches/min
• Max Stitch Length: Up to 11 mm
• Presser Foot Lift: 20–23 mm
• Needle System: 794 (Nm 130 – 280)
• Thread Range: Up to heavy threads (approx. Tex 400 / #8)
• Sewing Capacity: Up to ~3/4" (19 mm)
• Hook Type: Large Barrel Shuttle Hook

Why Choose the TN-441L-25

The TN-441L-25 is purpose-built for operations that require more than just power—it delivers workspace, control, and production efficiency on oversized products.

• Handle large projects without repositioning
• Maintain stitch consistency across long seams
• Improve operator efficiency and workflow
• Reduce handling time on bulky assemblies

Titan Advantage

Every Titan TN-441L-25 is assembled, calibrated, and fully tested in Canada, ensuring reliable performance and production-ready operation right out of the box.
