TN-9002C Single Needle Drop-feed Sewing Machine

TN-9002C

High-Speed Single Needle Drop Feed Sewing Machine (Dry Head System)
Clean Sewing. Digital Control. Built for Modern Production.

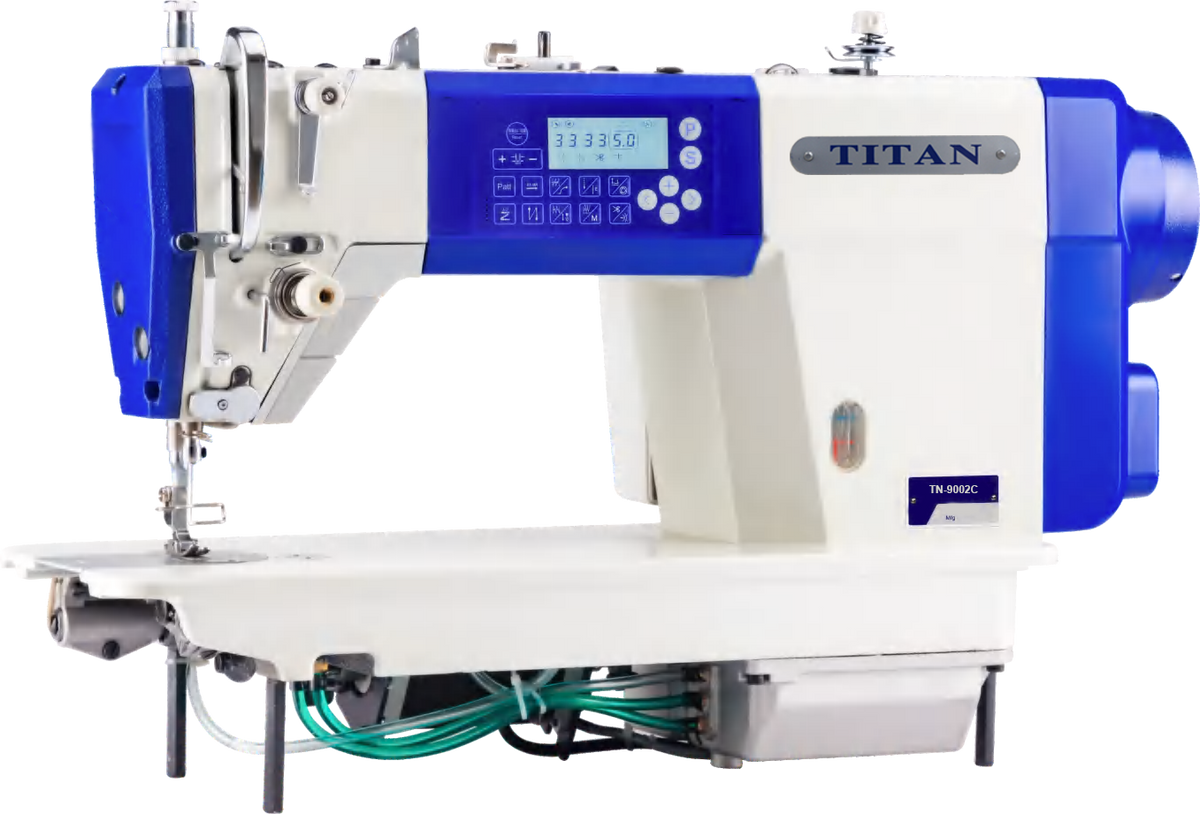

The Titan TN-9002C is a high-speed, single-needle drop feed lockstitch sewing machine engineered for clean, efficient sewing on light to medium-weight materials. Built with modern electronic control systems and a fully enclosed dry head lubrication system, this machine delivers consistent stitch quality while eliminating oil contamination risks.

Designed for garment production, light industrial sewing, and precision applications, the TN-9002C combines digital stitch control, automatic functions, and operator-focused ergonomics to improve both productivity and sewing accuracy.

Key Features

Dry Head Lubrication System (Sealed Oil System)
Unlike traditional oil pan machines, the TN-9002C uses a completely enclosed oil tank system, preventing oil splashing and reducing the risk of staining finished products.

Electronic Stitch Length Control (Step Motor Driven)
Digitally controlled stitch length improves consistency and allows for precise forward and reverse stitching, including decorative patterns at high speed.

High-Speed Lockstitch Performance
Built for production environments, the TN-9002C delivers smooth, reliable stitching at high speeds while maintaining accuracy and control.

Dual Moving Blade Thread Trimmer
Features a dual moving knife system that reduces thread tail length and minimizes birdnesting, improving stitch finish and reducing rework.

Operator-Centric Control Layout
All major controls—including reverse, needle positioning, and stitch adjustment—are positioned close to the operator, reducing fatigue and improving workflow efficiency.

Electronic Presser Foot Lift
Electronically assisted foot lift reduces effort and allows smoother operation during production cycles.

Improved Internal Design
Upgraded internal components provide quieter operation, smoother running, and increased durability over previous models.

Applications

• Garment manufacturing
• Light to medium fabric sewing
• Uniforms and workwear
• Quilting and decorative stitching
• General production sewing
• Contract sewing operations

Technical Specifications

• Machine Type: Single needle drop feed lockstitch
• Application: Light to medium-weight materials
• Feed Mechanism: Drop feed
• Needle System: DBx1 (16x231 / 16x257)
• Stitch Length Control: step motor driven
• Thread Trimming: Automatic (dual moving blade system)
• Lubrication: Dry head sealed oil system
• Control System: Electronic control interface
• Motor: Integrated / servo-driven system
• Power Supply: 110V / 220V

Why Choose the TN-9002C?

The TN-9002C is built for operations where clean sewing, precision control, and efficiency are critical. The dry head system eliminates one of the biggest risks in garment production—oil contamination—while the electronic controls provide superior stitch consistency and operator ease.

Compared to traditional drop feed machines, it offers:

Cleaner sewing (no oil splash)

More precise stitch control

Reduced operator fatigue

Improved thread trimming and finish quality

For shops focused on garments, light materials, and high-speed production, the TN-9002C is a modern upgrade that improves both quality and workflow.

What’s Included

• Titan TN-9002C sewing head
• Industrial table and stand
• Integrated servo motor system
• Control panel interface
• LED light
• Drawer with accessories (oil, tools, manuals)
• Full technical support (phone, email, video)

The Titan Advantage

Every Titan TN-9002C is assembled, calibrated, and fully tested in Canada to ensure smooth operation, clean stitching performance, and production-ready reliability right out of the box.
