TN-80700

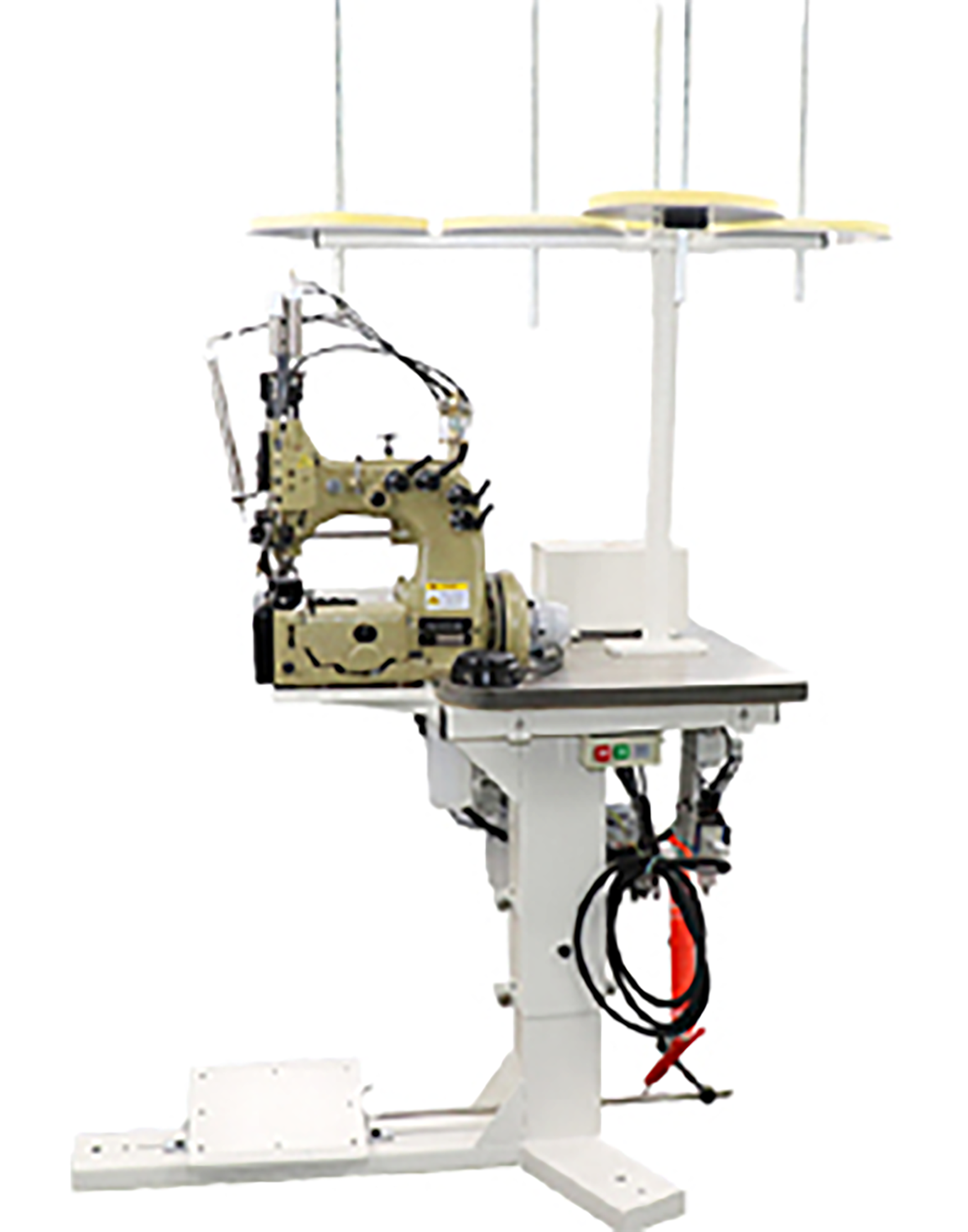

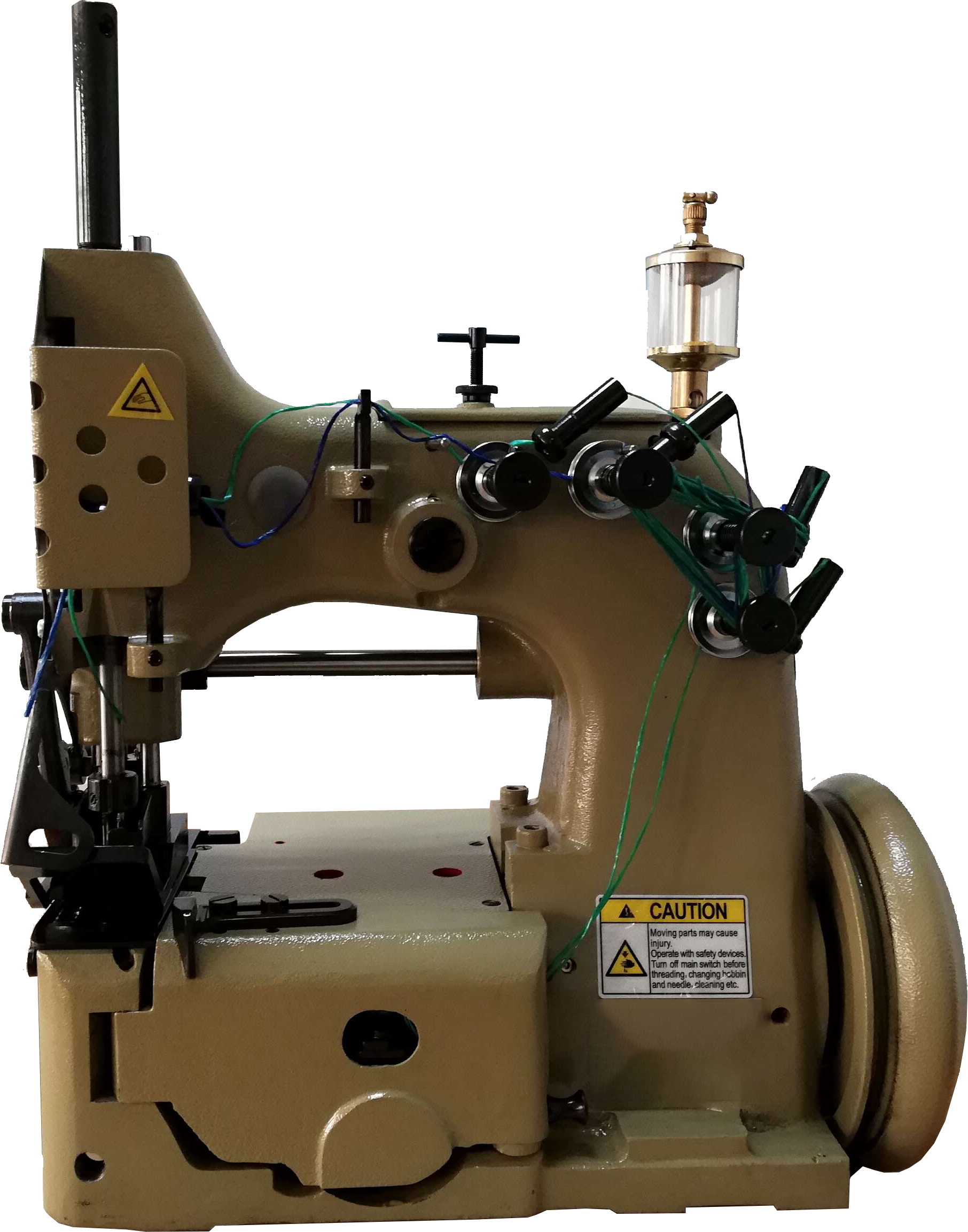

Titan TN-80700 Heavy-Duty FIBC Sewing Machine

Built for Bulk Bags. Engineered for Strength. Designed for Production.

The Titan TN-80700 is a heavy-duty, industrial chainstitch sewing machine engineered specifically for FIBC (Flexible Intermediate Bulk Container) manufacturing, woven polypropylene bags, and geotextile applications.

Built on the proven GK80700-CD3 platform, this machine is designed to handle extreme materials, multi-layer assemblies, and high-load structural seams with precision and reliability. With its double-needle chainstitch configuration and integrated filler cord capability, the TN-80700 delivers the seam strength and sealing performance required in bulk packaging environments.

Ideal for manufacturers producing jumbo bags, agricultural sacks, and industrial textile products, this machine is a dependable solution for consistent, high-strength seam construction.

Key Features

Double Needle Chainstitch System (401 Stitch)

The TN-80700 utilizes a 2-needle, 4-thread chainstitch system to create two parallel rows of high-strength stitching, providing redundancy and superior seam durability for load-bearing applications.

Top & Bottom Feed System

Equipped with a positive feeding mechanism, this machine ensures smooth and consistent material handling through thick, layered polypropylene fabrics and reinforced seams.

Filler Cord Integration

Designed with guides for top and/or bottom filler cord insertion, the TN-80700 helps seal needle punctures, reducing leakage when sewing powdered or granular materials.

Heavy-Duty Material Capability

Engineered to sew through multiple layers of woven PP, webbing, and reinforcement patches, making it ideal for structural seams in bulk bags.

Large Work Area

The open design allows operators to easily manage large panels and oversized materials without restriction.

Simple, Reliable Mechanical Design

Based on the CD3 configuration, this model offers straightforward operation and reduced maintenance complexity, making it ideal for facilities prioritizing reliability over automation.

Applications

FIBC / Jumbo bag manufacturing

Woven polypropylene (PP) bags

Geotextiles and construction textiles

Agricultural and industrial packaging

Loop attachment and reinforcement seams

Baffle (Q-bag) construction

Specifications

Machine Type: Heavy-Duty Industrial Chainstitch

Stitch Type: Double 401 Chainstitch

Needle Configuration: 2 Needle

Thread Configuration: 4 Thread

Max Sewing Speed: Up to ~1,400 stitches per minute

Stitch Length: 6 – 12 mm

Material Thickness Capacity: Up to ~18 mm

Feed System: Top and bottom feed

Needle System: UY9848G (or equivalent)

Lubrication: Manual / semi-automatic oiling

Why Choose the Titan TN-80700?

The TN-80700 is purpose-built for manufacturers who need strength, consistency, and durability in demanding production environments. Unlike standard industrial sewing machines, this unit is engineered specifically for structural sewing of bulk materials, ensuring long-lasting seam integrity under load.

Assembled and tested in Canada, every Titan machine is backed by reliable support, quality control, and real-world production performance.

Built for Bulk Production

If your operation requires a machine capable of handling heavy materials, high-load seams, and continuous production, the Titan TN-80700 delivers dependable performance where it matters most.

Configurations

The TN-80700CD3 is great for onsite installation, on a stand, hanging or any modified jobsite.  The TN-80700 can even be modified to mount on a cart, go-cart, or other moving stand to help when sewing artificial turf.

The TN-80700CD4 features an electropneumatic pressure/lifter mechanism for the presser foot and upper feed dog.

The TN-80700CD5 comes completely with electropneumatic options for presser, foot lifter as well as a needle cooler to keep production at a maximum.  The TN-80700CD5 also comes with an electric thread cutter to ensure perfect cutting of the threads every time.

The Titan Advantage

Every TN-80700 is assembled, calibrated, and fully tested in Canada to ensure reliable, production-ready performance right out of the box.
