TN-750W Energy saving Servo Motor

Titan TN-750W Servo Motor

Industrial Sewing Machine Servo Motor System
Precision Control. Quiet Operation. Built for Modern Production.

The Titan TN-750W Servo Motor is a high-efficiency, brushless industrial sewing machine motor engineered to deliver precise speed control, strong torque, and ultra-quiet operation. Designed to replace traditional clutch motors, this system provides operators with smooth startup, accurate control at low speeds, and significant energy savings in production environments.

With 750W (1HP) of output, the TN-750W is capable of powering everything from light-duty garments to heavy-duty walking foot and compound feed machines, making it a versatile solution across a wide range of industrial sewing applications.

Key Features

750W (1HP) High-Efficiency Output
Delivers strong torque and consistent performance across a wide range of materials, from lightweight fabrics to heavy assemblies.

Precise Variable Speed Control
Electronically controlled speed adjustment allows operators to dial in exact sewing speeds—ideal for both high-speed production and slow, controlled stitching.

Ultra-Quiet Operation
Unlike traditional clutch motors that run continuously, servo motors operate only when engaged—dramatically reducing noise in the workspace.

Energy Efficient Design
Consumes up to 50–70% less power compared to conventional clutch motors, reducing operating costs over time.

High Torque at Low Speeds
Provides excellent needle penetration and control even at slow speeds—critical for leather, upholstery, and detailed work.

Adjustable Speed Range
Typical operating range from ~500 to 5000 RPM, allowing flexibility across different sewing applications.

Low Vibration & Smooth Operation
Brushless design minimizes vibration, improving stitch consistency and operator comfort.

Compact & Easy Installation
Direct replacement for standard clutch motors using existing mounting points—no major modifications required.

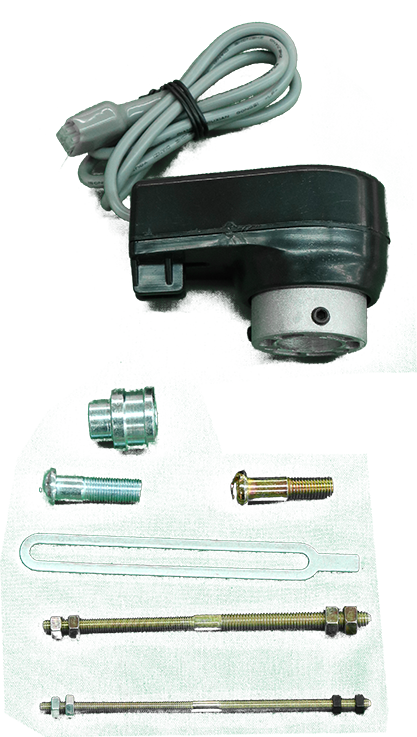

Needle Positioning

The motor is set up and equipped with a needle positioning system that allows the operator to control the needle stop positioning.

Applications

• Walking foot & compound feed machines
• Lockstitch and zig-zag machines
• Upholstery & automotive sewing
• Leather and heavy material work
• Garment production & light materials
• General industrial sewing applications

Technical Specifications

• Motor Type: Brushless Servo Motor
• Power Output: 750W (1HP)
• Voltage: 110V / 220V (configurable)
• Speed Range: ~500 – 3500 RPM (adjustable)
• Control System: Digital speed control
• Rotation: Forward / Reverse (CW / CCW)
• Noise Level: Low (runs only when engaged)
• Energy Savings: Up to 50–70% vs clutch motors
• Installation: Standard industrial motor mount

Why Choose the TN-750W Servo Motor?

The TN-750W is one of the most impactful upgrades you can make to an industrial sewing machine. Compared to traditional clutch motors, it provides:

Full control at slow speeds (no more runaway starts)

Significantly quieter operation

Lower power consumption

Improved stitch accuracy and consistency

Whether you’re running a single machine or outfitting a full production floor, this motor improves both operator control and overall efficiency.

What’s Included

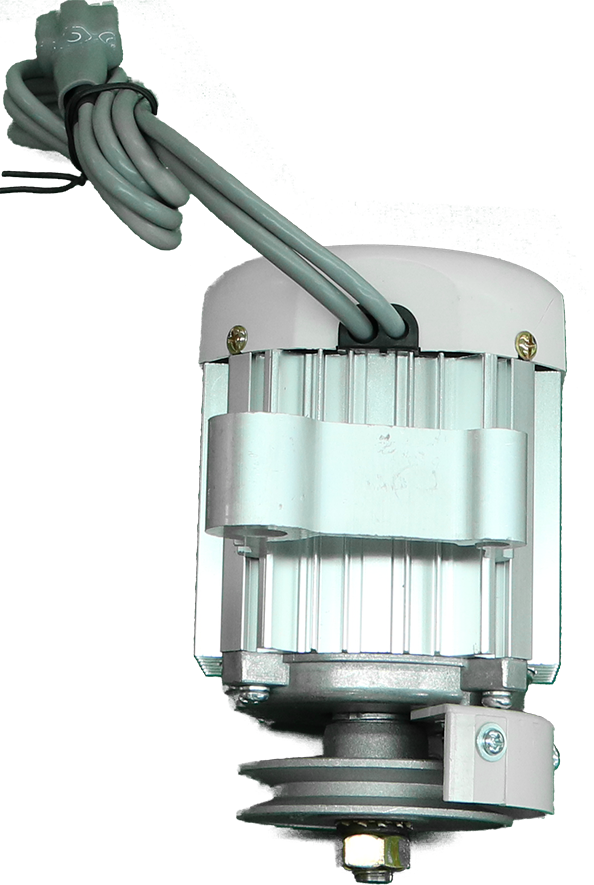

• TN-750W Servo Motor unit

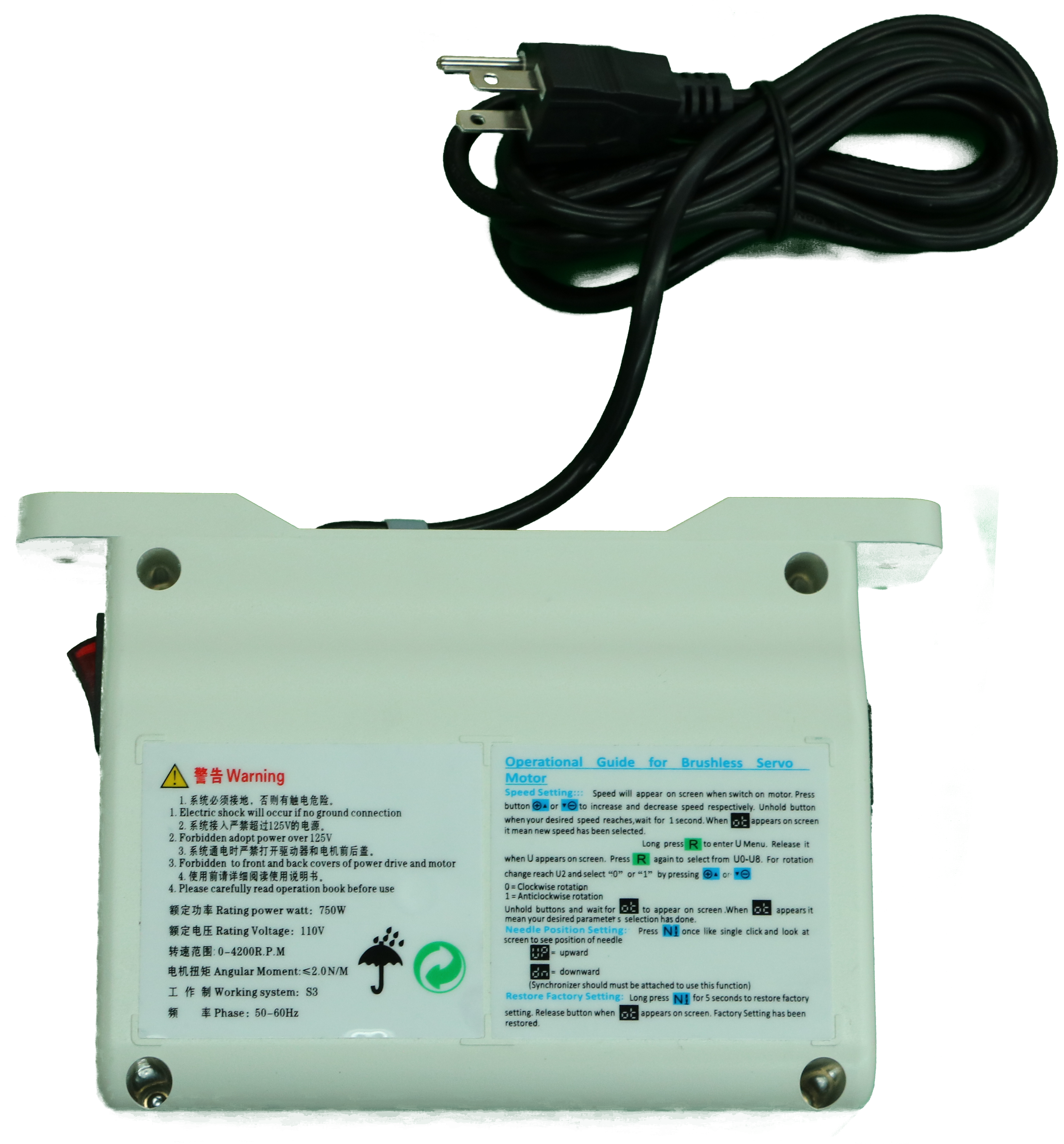

• Digital control box

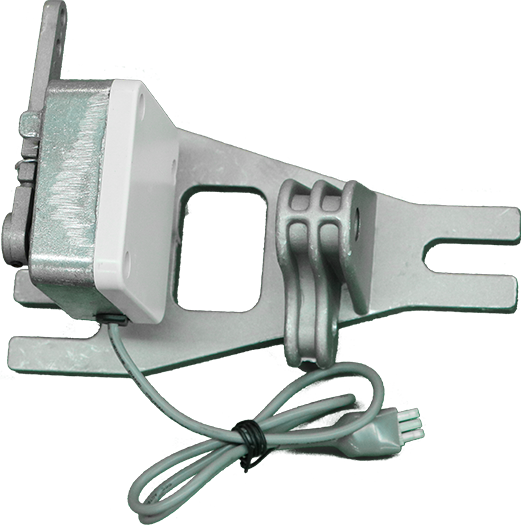

• Foot pedal linkage
• Mounting hardware
• Instruction manual

The Titan Advantage

Every Titan TN-750W Servo Motor is selected and configured to match industrial sewing applications, ensuring reliable performance across a wide range of machines—from lightweight lockstitch units to heavy-duty walking foot systems.
