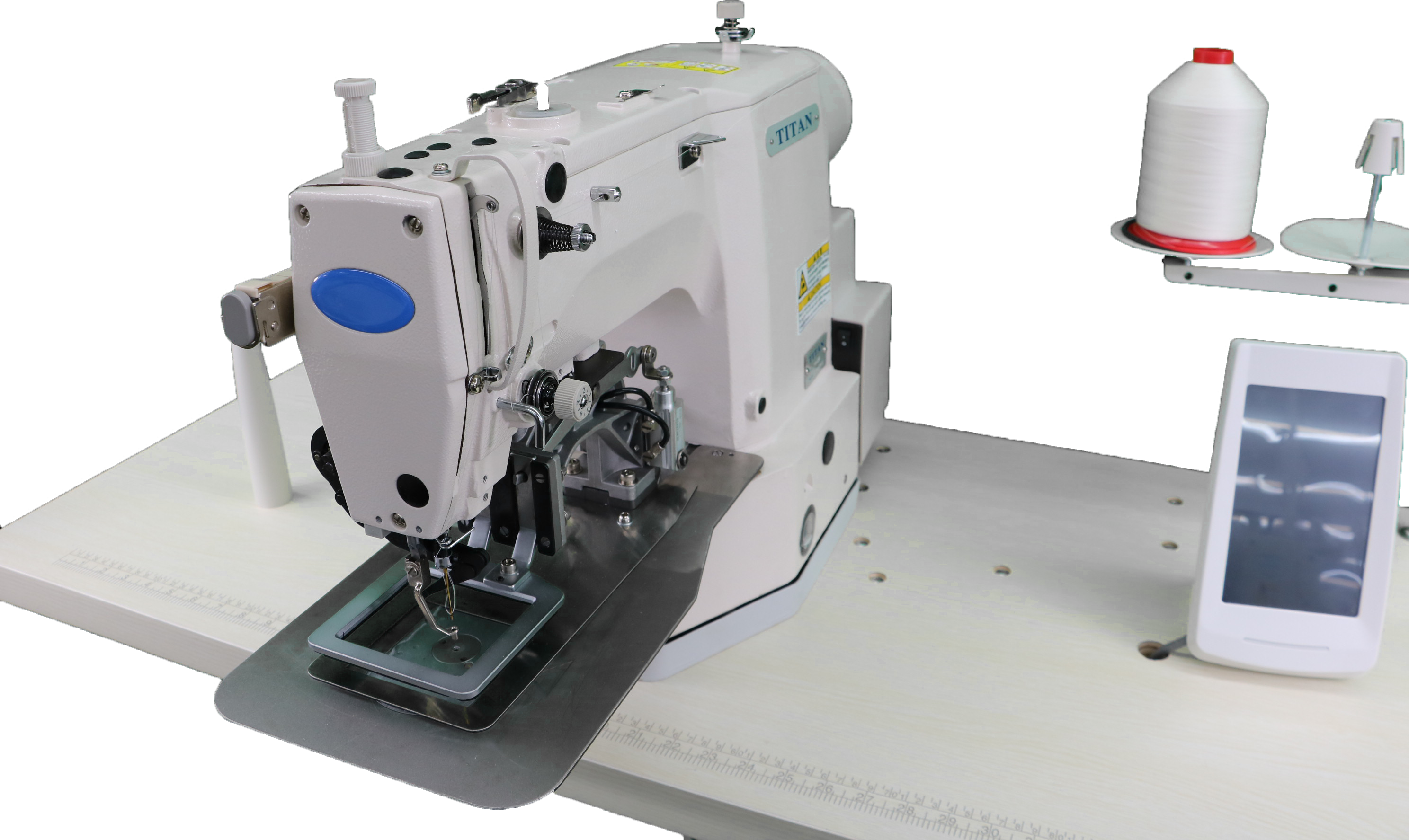

TN-436 Programmable Tacker

Titan TN-436BH

Programmable Electronic Pattern Tacker (Bar Tack Machine)
Precision Automation. Reinforced Stitching. Built for Production.

The Titan TN-436BH is a high-speed, programmable electronic pattern tacker engineered for precision reinforcement stitching and automated sewing patterns. Built on the proven TN-436 platform, this machine delivers consistent, repeatable stitch quality across a wide range of materials and applications.

With a 60mm x 60mm sewing field, high-resolution stitch control, and onboard programming, the TN-436BH allows operators to create, modify, and store custom stitch patterns, making it ideal for high-volume production environments where accuracy and consistency are critical.

Designed for garment manufacturing, technical textiles, and reinforcement applications, the TN-436BH replaces manual bar tacking and pattern sewing with fully controlled, automated precision.

Key Features

Programmable Pattern Sewing System
Create, edit, and store custom stitch patterns directly on the machine using the built-in control system—ideal for repeatable production work.

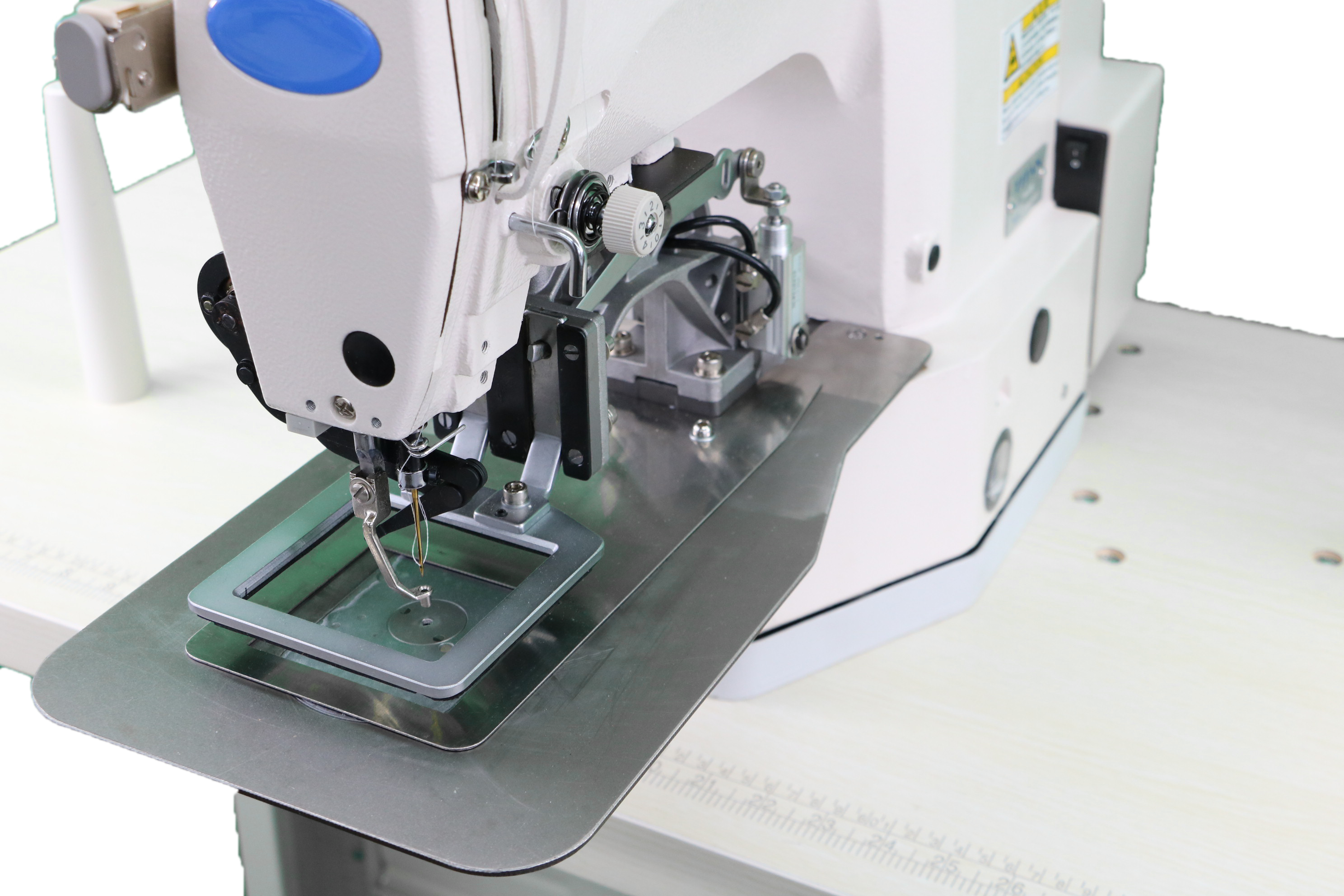

60mm x 60mm Sewing Area
Provides a versatile working field for reinforcement stitching, box patterns, bartacks, and custom designs.

High-Speed Direct Drive Operation
Capable of speeds up to 3,000 stitches per minute, ensuring fast cycle times and high production output.

High-Resolution Stitch Accuracy (0.1mm)
Delivers precise needle placement for clean, consistent patterns—critical for structural stitching and quality control.

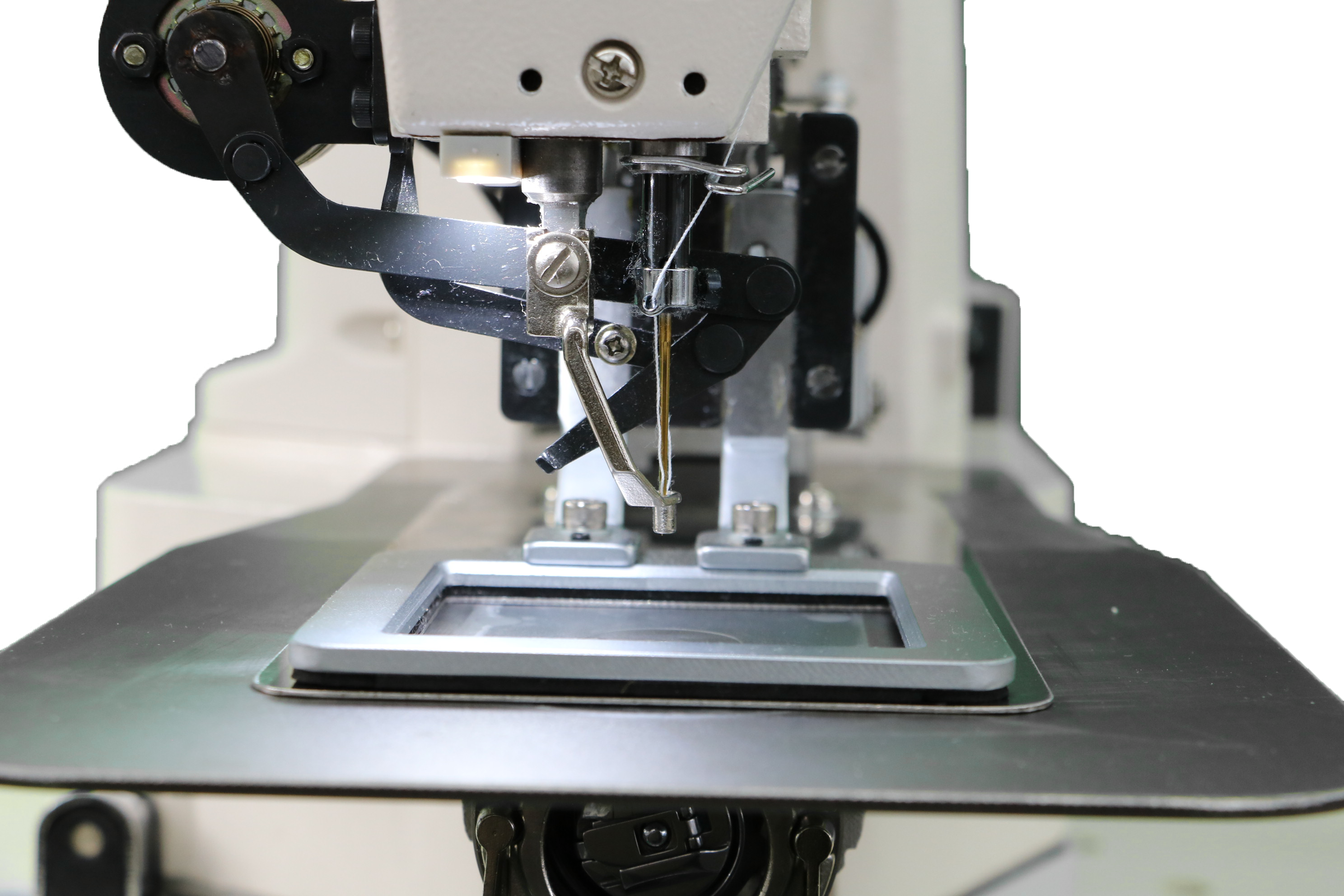

Electronic Presser Foot Control
Automatically adjusts pressure and movement for varying material thickness, improving consistency across multi-layer assemblies.

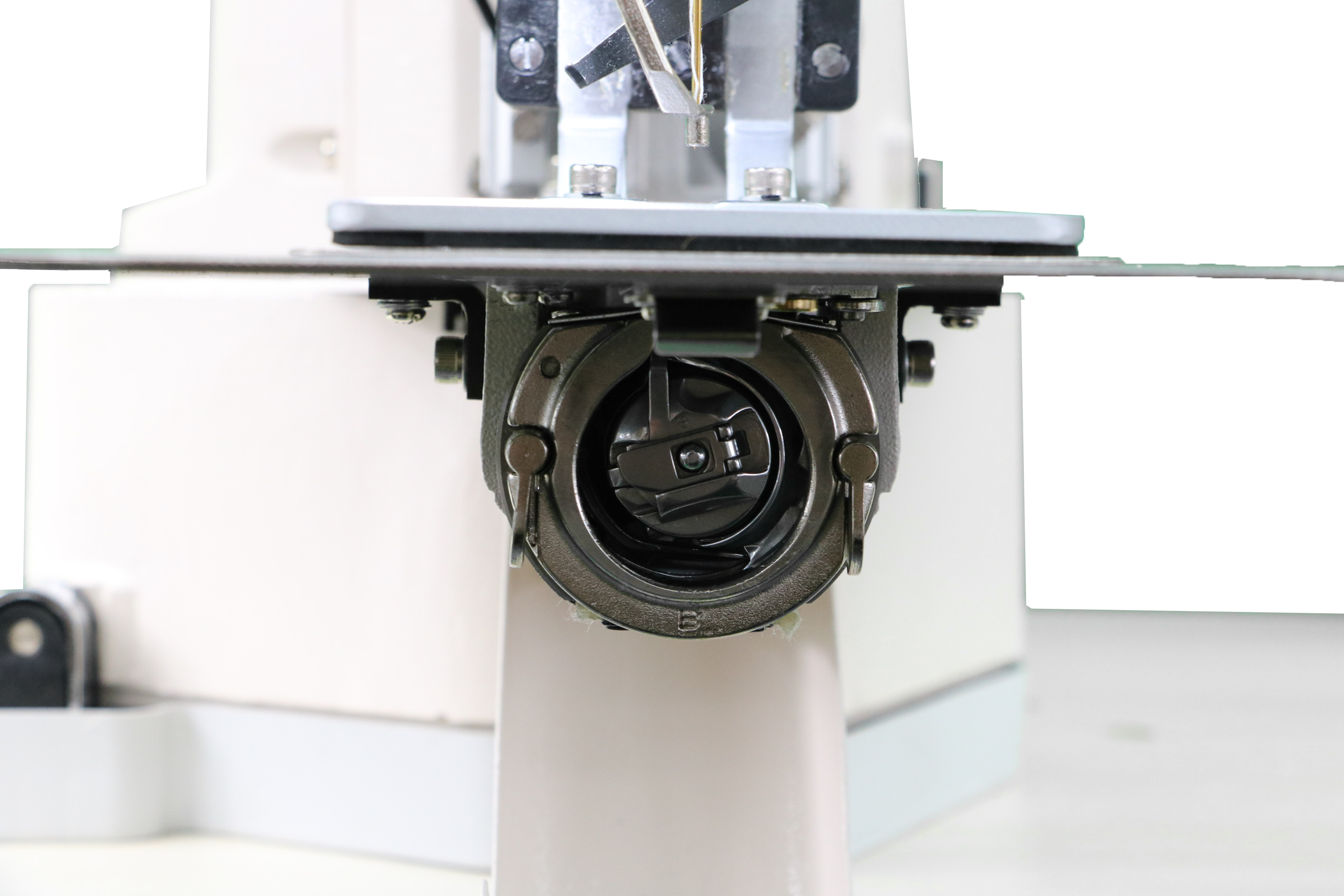

Large Shuttle Hook System
Supports a wide range of thread sizes, enabling strong reinforcement seams across different materials.

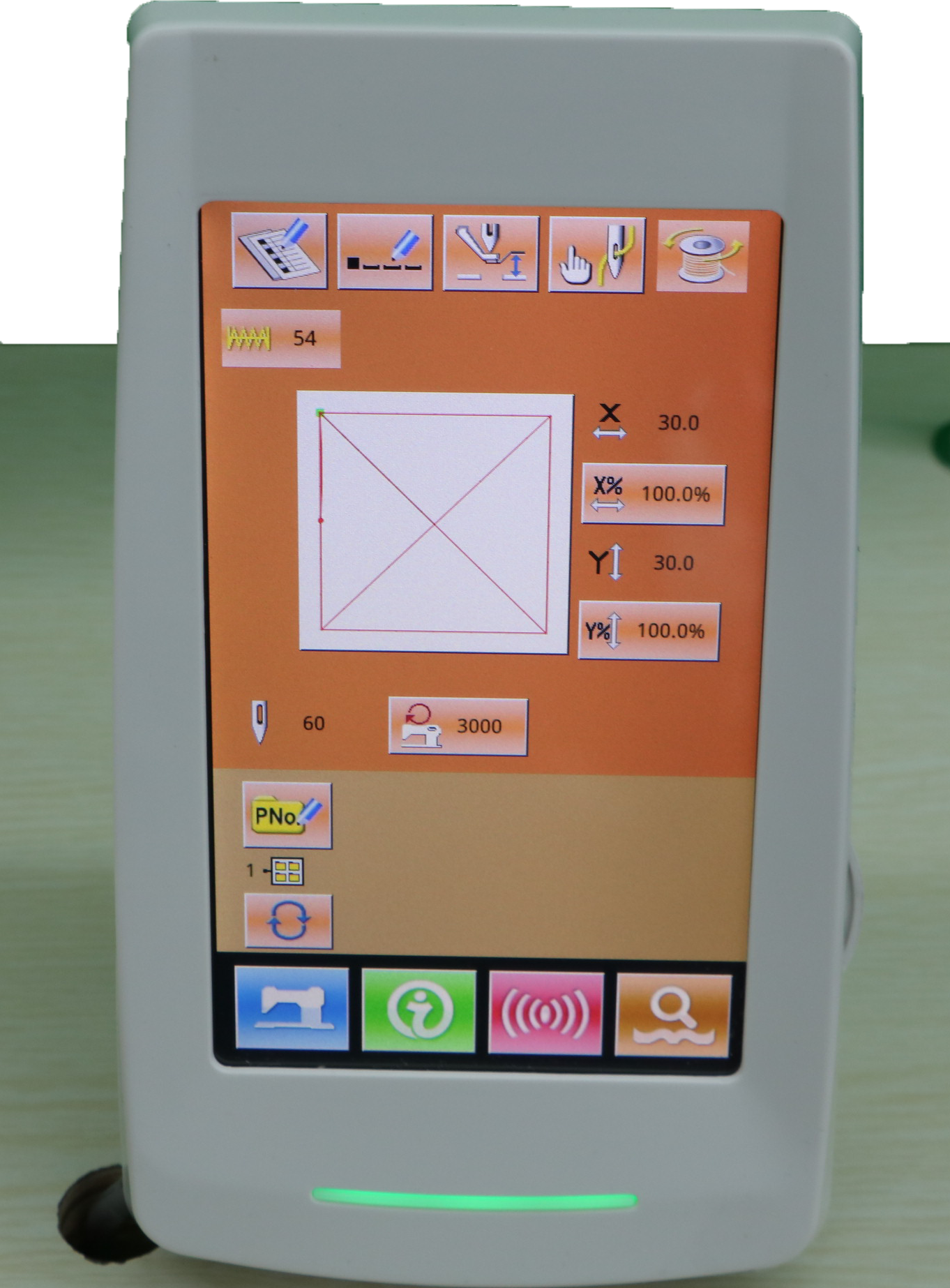

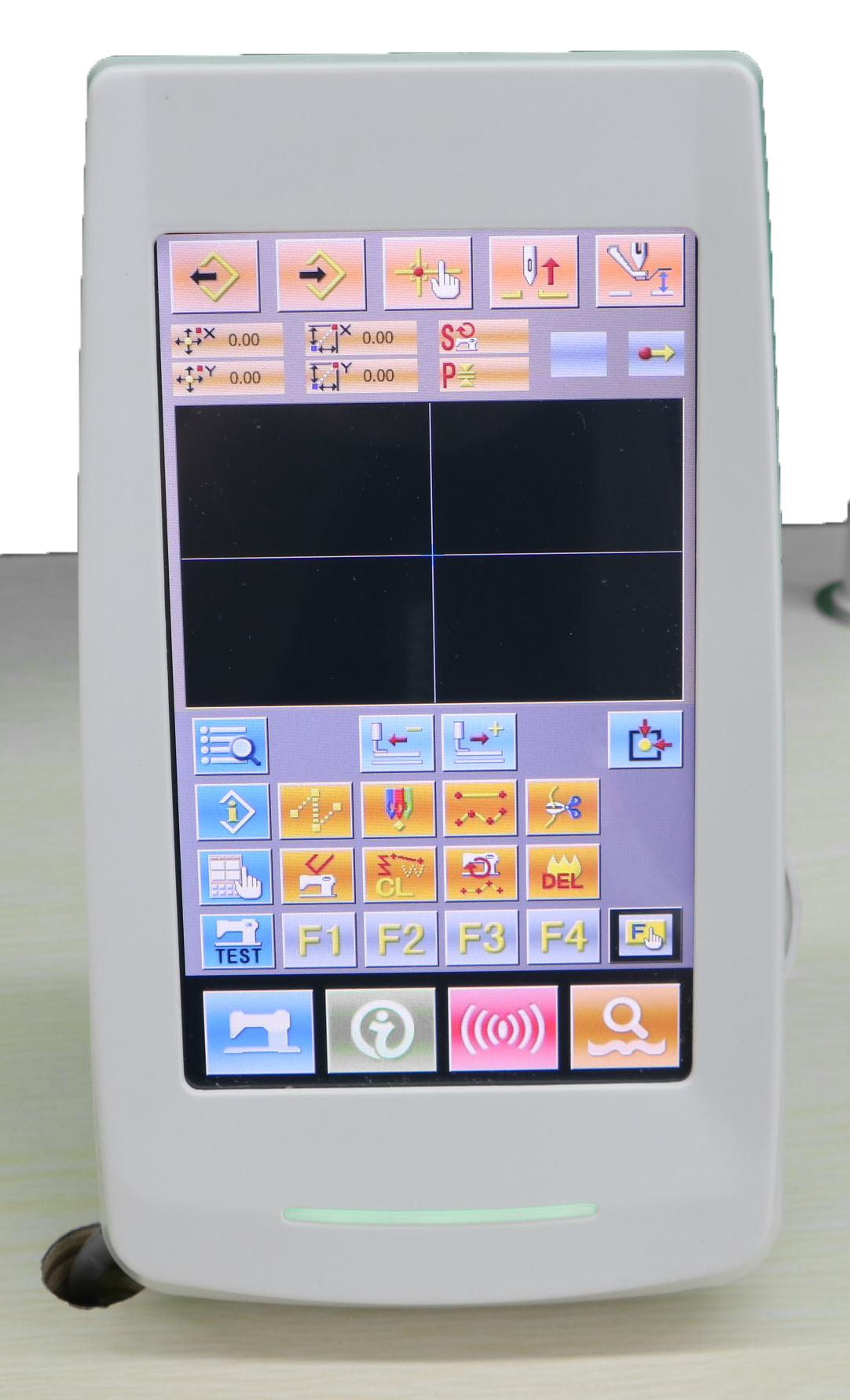

Touchscreen LCD Control Panel
Equipped with a full-color 7” interface, allowing easy programming, pattern management, speed control, and diagnostics.

Direct Drive Servo Motor
Integrated motor system provides quiet operation, reduced vibration, and improved energy efficiency compared to belt-driven systems.

Applications

• Bar tacking (belt loops, pockets, reinforcement points)
• Box stitching for straps and load-bearing seams
• Safety gear & webbing assemblies
• Bags, luggage & tactical equipment
• Apparel production & workwear
• Technical textiles & industrial sewing

Technical Specifications

• Machine Type: Programmable Electronic Pattern Tacker
• Sewing Area: 60mm x 60mm
• Max Sewing Speed: Up to 3,000 SPM
• Stitch Length: 0.1 – 12.5 mm
• Needle System: DPx5 (#90 – #140)
• Needle Bar Stroke: 41.2 mm
• Feeding Frame Lift: 17 mm
• Jump Foot Stroke: 0 – 3.5 mm (max 7 mm)
• Pattern Storage: USB / onboard memory
• Motor: Direct drive servo motor (~500–750W class)
• Power Supply: 110V / 220V single phase

(Specs aligned with TN-436 platform)

Why Choose the TN-436BH?

The TN-436BH is built for operations that require consistent reinforcement stitching with zero variation. Unlike manual sewing or mechanical bartackers, this system ensures:

Repeatable, programmable patterns

Higher production speed

Reduced operator error

Cleaner, stronger stitch quality

For manufacturers producing workwear, bags, straps, or safety products, this machine significantly improves both efficiency and product durability.

What’s Included

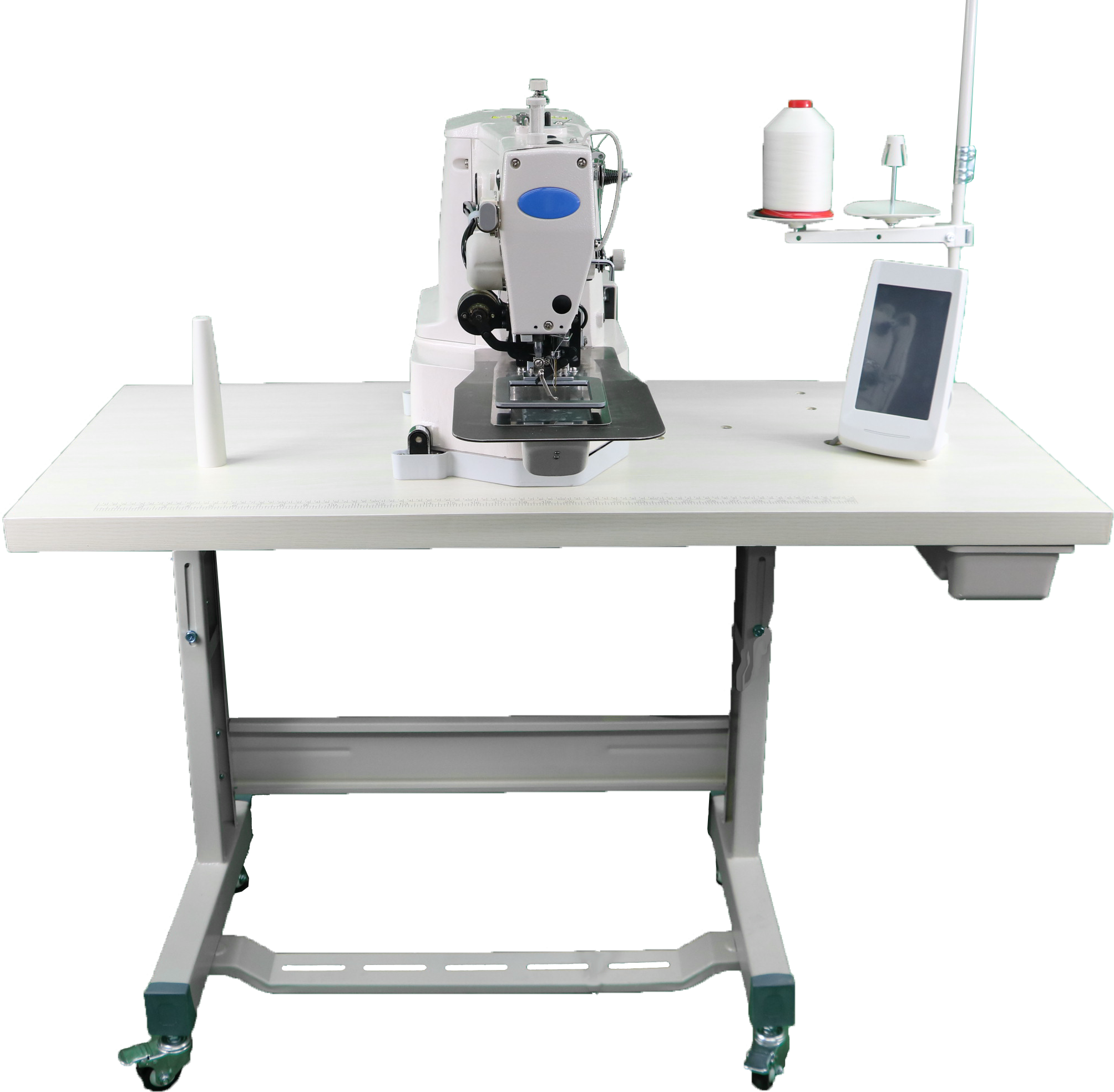

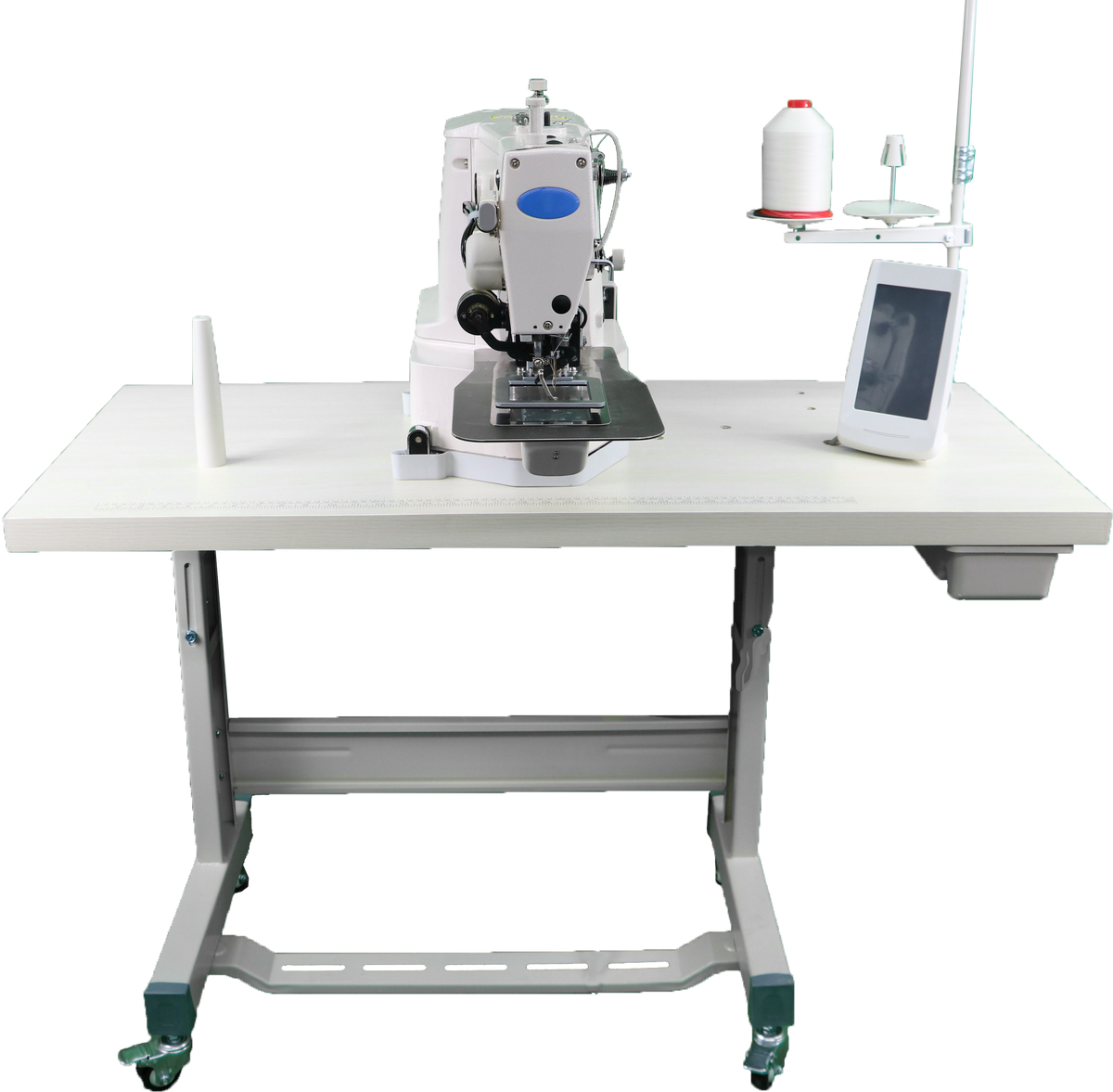

• Fully integrated programmable sewing head
• Industrial stand and tabletop
• Direct drive servo motor system
• Touchscreen control panel
• Clamp set (application dependent)
• LED lighting system
• Accessories (tools, needles, manuals)
• Full technical support (phone, email, video)

The Titan Advantage

Every Titan TN-436BH is assembled, calibrated, and fully tested in Canada to ensure accurate pattern execution, consistent stitch quality, and reliable production performance from day one.
