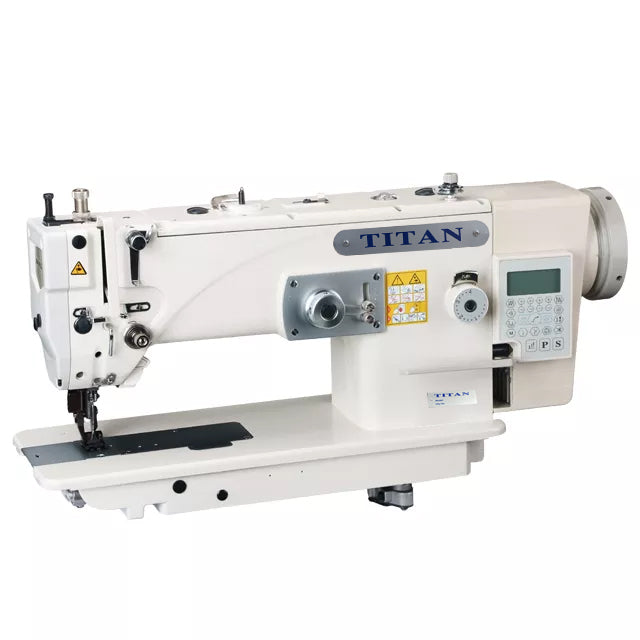

Titan TN-2530D Zigzag sewing machine

The TN-2530D Walking Foot Zigzag Sewing Machine is a heavy-duty industrial sewing solution designed for applications requiring strong feeding power, consistent stitch formation, and wide zigzag capability. Featuring a top and bottom feed system and direct-drive motor technology, the TN-2530D delivers stable performance on medium to heavy materials where conventional zigzag machines struggle.

This machine is widely used in leather goods manufacturing, upholstery, canvas products, marine textiles, footwear, outdoor gear, and technical sewing operations.

The TN-2530D combines zigzag stitch versatility with a synchronized upper and lower feeding mechanism. Unlike standard zigzag machines that rely solely on feed dogs, the walking foot system moves in together with the material, reducing slippage, puckering, and layer shifting. This results in superior stitch consistency across multiple layers and difficult materials.

With a robust casting, large hook system, and integrated direct-drive motor, the TN-2530D is engineered for production environments while remaining precise enough for custom and small-batch work.

Key Features

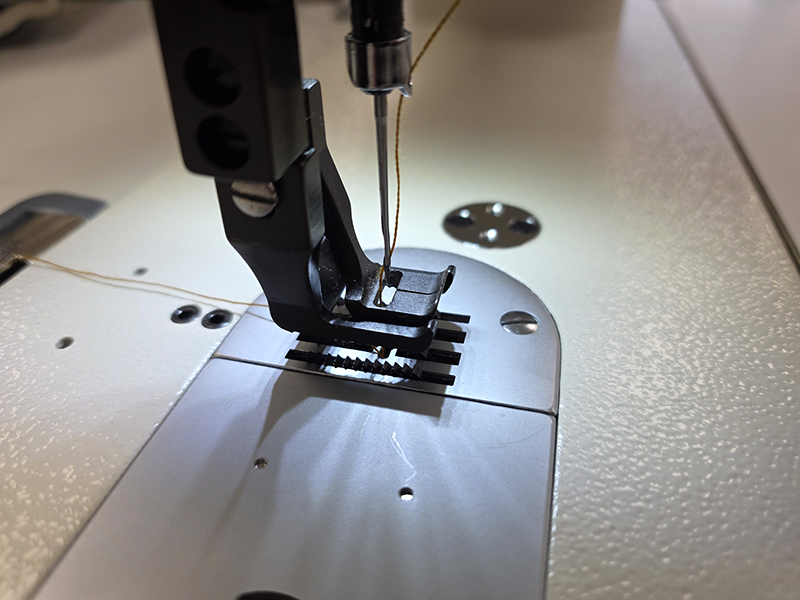

• Top and Bottom feed mechanism
• Zigzag and straight stitch capability

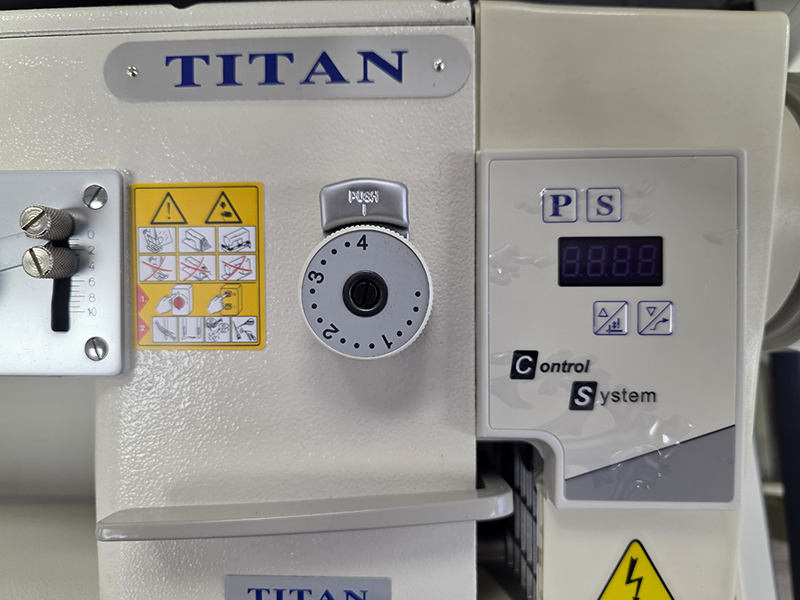

• Direct-drive integrated motor

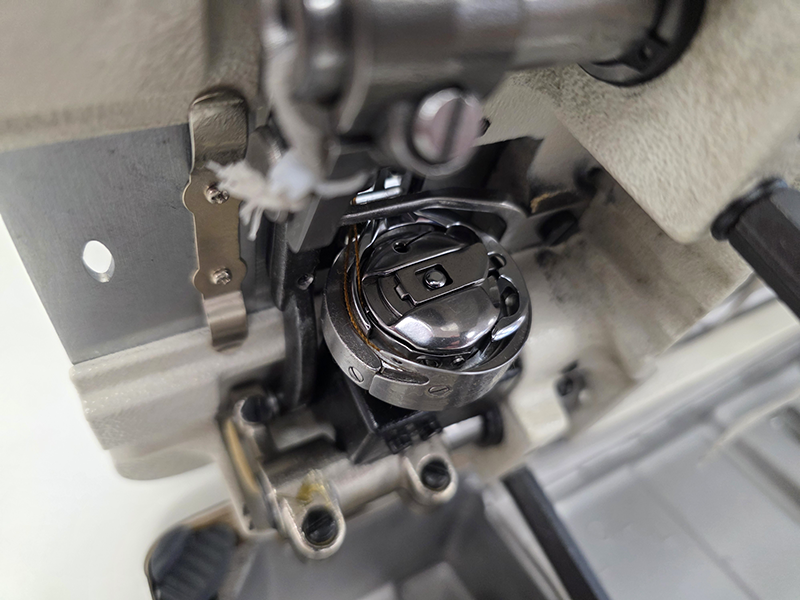

• Large vertical hook with increased bobbin capacity
• Wide zigzag stitch width capability
• High-torque performance at low speeds
• Smooth, quiet operation
• Industrial-grade build quality

This machine come complete, with table, stand, motor and LED lights.

Technical Specifications:

• Maximum sewing speed: 2,000 stitches per minute

• Maximum stitch length: 4 mm forward and reverse

• Maximum stitch width: 10 mm

• Needle: DP×17 industrial needle

• Hook: Large capacity hook

• Drive: Direct drive motor
