TN-1760 2 Needle Postbed Walking Foot

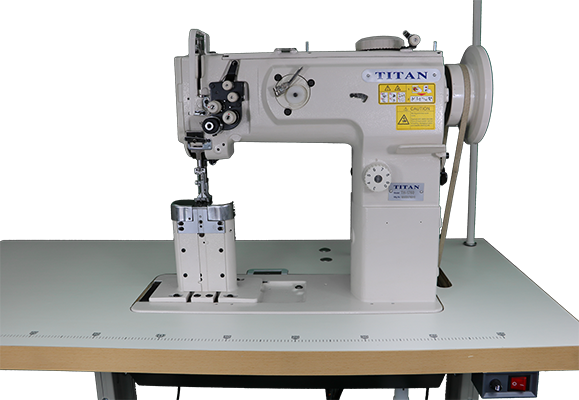

Titan TN-1760

Heavy-Duty 2-Needle Post Bed Walking Foot Sewing Machine
Dual Stitching. Elevated Access. Built for Complex Work.

The Titan TN-1760 is a heavy-duty 2-needle post bed walking foot sewing machine designed for precision stitching on shaped, curved, and three-dimensional products. Combining dual-needle lockstitch capability with a raised post bed design, this machine allows operators to produce clean, parallel seams while maintaining full control over complex assemblies.

Engineered for demanding applications such as footwear, bags, automotive interiors, and technical textile work, the TN-1760 delivers consistent feeding, strong stitch formation, and excellent visibility, making it ideal for production environments where both accuracy and access are critical.

Key Features

2-Needle Lockstitch Configuration
Produces two parallel rows of stitching in a single pass, improving seam strength, consistency, and production efficiency.

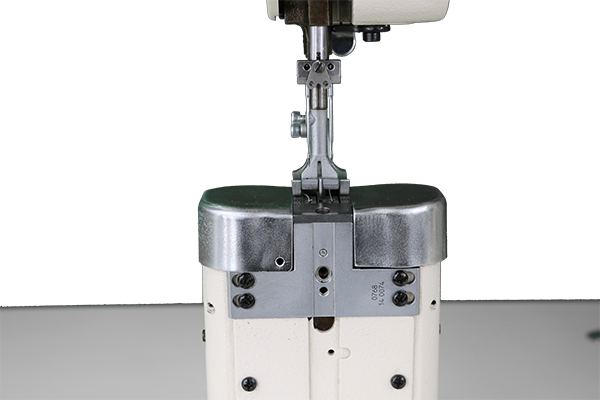

Post Bed Design for 3D Products
Elevated post allows easy handling of shaped items such as shoes, bags, and assembled components—ideal for sewing around curves and tight areas.

Compound Walking Foot Feed System
Ensures even material feeding across multiple layers by combining needle feed, walking foot, and bottom feed—reducing shifting and maintaining stitch quality.

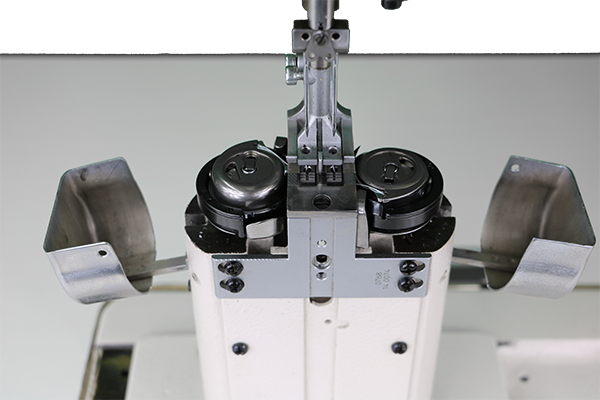

Dual Hook System (Large Capacity)
Supports heavier threads and extended run times with reduced bobbin changes, improving productivity in industrial settings.

High Presser Foot Lift
Provides clearance for thicker materials and multi-layer assemblies.

Reverse Stitching
Integrated reverse function allows for clean seam reinforcement at the beginning and end of stitching.

Servo Motor Operation
Typically paired with the Titan TN-750W servo motor for quiet operation, precise speed control, and improved low-speed handling.

Applications

• Footwear uppers and shoe components
• Bags, luggage, and leather goods
• Automotive interiors and trim work
• Upholstery on shaped or assembled products
• Webbing, straps, and reinforcement seams
• Technical textiles and specialty sewing

Technical Specifications

• Machine Type: Heavy-duty 2-needle post bed walking foot sewing machine
• Application: Medium to heavy materials
• Stitch Type: 2-needle lockstitch
• Needle System: 135x17 (DPx17)
• Feed Mechanism: Compound feed (needle feed + walking foot + bottom feed)
• Needle Gauge: Configurable (e.g., 1/4", 3/8")
• Max Stitch Length: Up to ~9mm
• Presser Foot Lift: High lift for heavy materials
• Hook: Dual large-capacity hooks
• Reverse Stitching: Yes
• Motor: Titan TN-750W Servo Motor
• Power Supply: 110V / 220V

Why Choose the TN-1760?

The TN-1760 is built for operations that require both dual-row stitching and the ability to handle complex, shaped products. The post bed design gives operators unmatched access and visibility, while the 2-needle configuration improves efficiency and seam consistency.

For manufacturers working in footwear, bags, upholstery, and automotive sectors, this machine provides the ideal balance of control, durability, and production output.

What’s Included

• Titan TN-1760 sewing head
• Industrial tabletop and stand
• Titan TN-750W Servo Motor
• LED sewing light
• Drawer with accessories (oil, tools, manuals)
• Full technical support (phone, email, video)

The Titan Advantage

Every Titan TN-1760 is assembled, calibrated, and fully tested in Canada to ensure consistent stitch quality, smooth operation, and reliable performance in demanding production environments.
