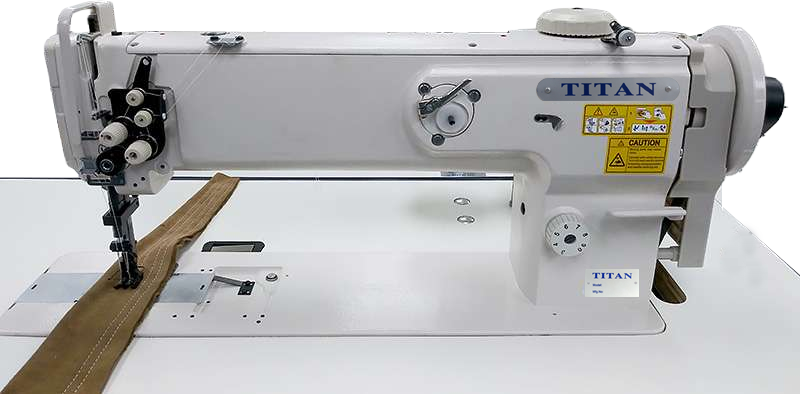

TN-1560L-18H, 2 needle walking foot, 18" long arm (High Version)

Titan TN-1560L-18H

Long Arm Heavy-Duty 2-Needle Walking Foot Sewing Machine

Extended Reach. Industrial Power. Built for Large-Scale Work.

The Titan TN-1560L-18H is a heavy-duty, long-arm 2-needle walking foot sewing machine engineered for handling large materials, bulky assemblies, and high-output industrial applications. Built on the proven 1560 platform, this model features an 18” extended arm and high arm clearance, giving operators the workspace needed for oversized projects without sacrificing stitch consistency or control.

Designed for upholstery, automotive interiors, tarps, covers, and heavy textile fabrication, the TN-1560L-18H delivers the same reliability as the standard 1560—now with significantly expanded working capacity.

Key Features

18” Long Arm / High Arm Design

Provides a large working area for handling oversized panels, long seams, and bulky assemblies with ease. Ideal for tents, covers, cushions, and industrial fabric products.

Dual Needle Configuration

Allows for precise, parallel rows of stitching in a single pass—perfect for structural seams and production efficiency.

Compound Walking Foot Feed System

Ensures smooth, even feeding across multiple layers, preventing shifting and maintaining stitch consistency on heavy materials.

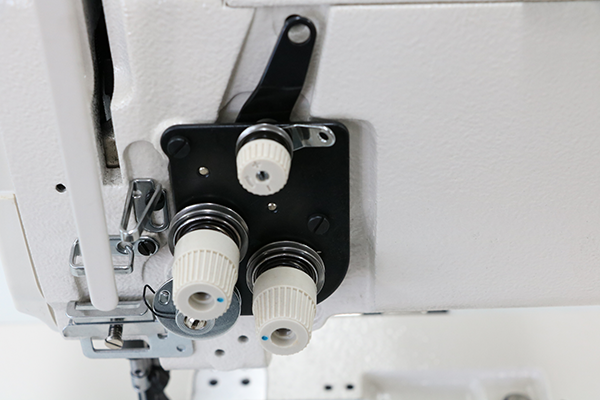

Dual Tension Mechanism

Supports high-tension sewing with heavier thread sizes, producing strong, balanced seams across a wide material range.

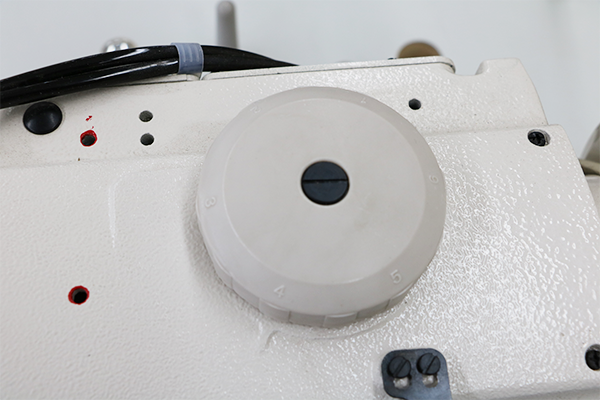

Adjustable Walking Foot Climbing Device

Easily adjust walking foot height to match material thickness, reducing drag and preventing snagging during transitions.

High Presser Foot Lift

Up to 16mm lift allows for easy handling of thick assemblies and layered materials.

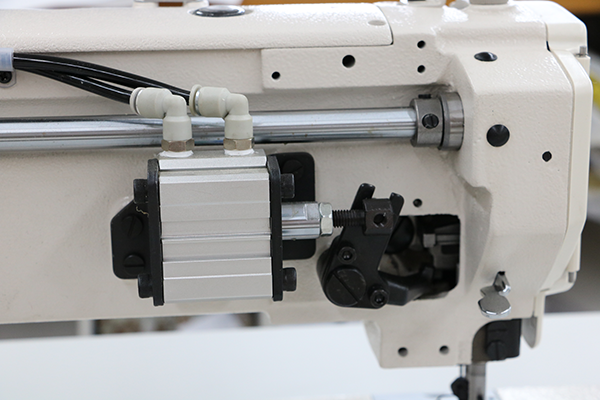

Air Foot Lift & Automatic Lubrication

Equipped with an air-operated foot lift and self-oiling system, improving efficiency and reducing operator fatigue in production environments.

Applications

• Upholstery & furniture manufacturing
• Automotive & marine interiors
• Tarps, tents & covers
• Canvas, awnings & industrial textiles
• Bags, straps & heavy fabric assemblies

Technical Specifications

• Application: Medium to Extra Heavy Materials
• Arm Length: 18” Long Arm / High Arm Configuration
• Max Sewing Speed: Up to 2,000 SPM
• Needle System: 135x17
• Needle Gauge: 1/4" or 3/8" (configurable)

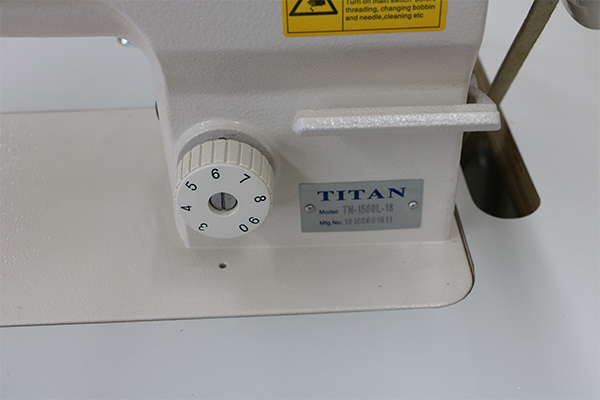

• Max Stitch Length: 9mm (forward & reverse)
• Presser Foot Lift: 16mm (air), 9mm (hand)
• Thread Range: TEX 40 – TEX 210

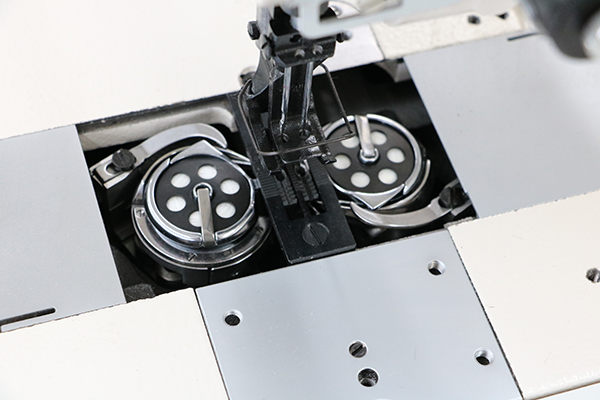

• Hook: Horizontal axis, double-capacity hook
• Feed Mechanism: Compound rectangular feed
• Tension System: Dual tension

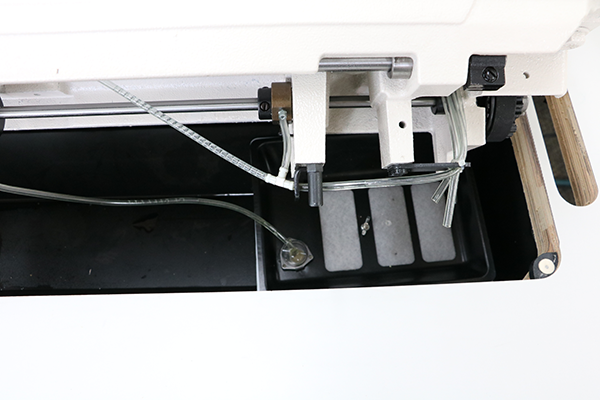

• Lubrication: Automatic self-oiling system

Why Choose the TN-1560L-18H?

The TN-1560L-18H is built for operations that need more workspace without stepping into cylinder arm machines or ultra-long platforms. It’s the ideal solution for shops producing large-format textile products, automotive interiors, and heavy-duty assemblies, where reach and control are critical.

If the standard 1560 handles your material—but limits your workspace—the 18H platform removes that restriction, allowing for smoother handling, improved efficiency, and better overall workflow on large projects.

What’s Included

Fully laminated plywood tabletop with rubber trim

Titan Deluxe 2.0 T-stand with locking wheels

TN-750W Needle positioning Servo Motor

Drawer with accessories (oil, tools, manuals)

LED light (TN-30)

Full technical support (phone, email, video)

The Titan Advantage

Every TN-1560L-18H is assembled, calibrated, and fully tested in Canada to ensure reliable, production-ready performance right out of the box.
