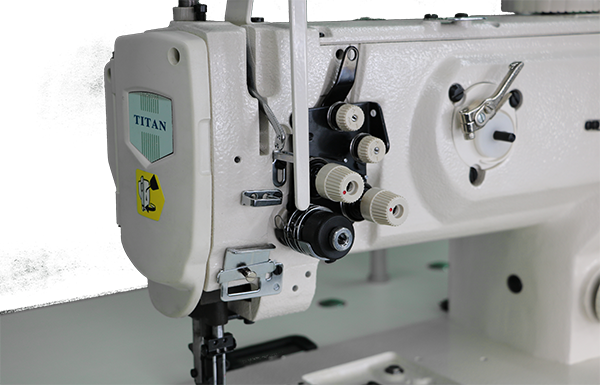

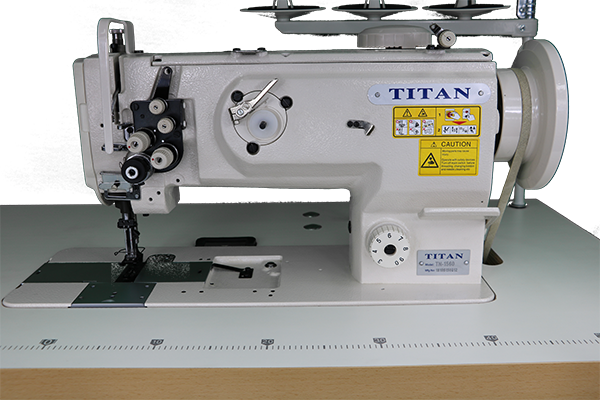

Titan TN-1560, 2 needle walking foot

Titan TN-1560

Heavy-Duty 2-Needle Walking Foot Sewing Machine

Built for Strength. Designed for Consistency. Ready for Production.

The Titan TN-1560 is a heavy-duty, 2-needle walking foot sewing machine engineered for demanding industrial applications. Designed to handle a wide range of materials—from light assemblies to heavy-duty fabrics and leather—this machine delivers consistent stitch quality, superior feeding, and long-term durability in high-output environments.

With a dual tension system, Climbing Device, and a powerful compound feed mechanism, the TN-1560 ensures clean, balanced seams even when working with thick thread and layered materials.

The standard needle gauge for this machine is 1/4" between the needles.

Key Features

Dual Needle Configuration

Produce clean, parallel rows of stitching in a single pass—ideal for upholstery, automotive interiors, tarps, and technical textiles.

Compound Walking Foot Feed System

A complete rectangular feed system ensures smooth, even material feeding across multiple layers, preventing shifting and maintaining stitch consistency.

Dual Tension Mechanism

Designed to handle high-tension sewing with heavy thread, delivering strong, reliable seams across a wide range of materials.

Adjustable Walking Foot Climbing Device

Easily dial in walking foot height to accommodate varying material thickness, preventing snagging and improving workflow efficiency.

High Presser Foot Lift

With up to 16mm lift, operators can comfortably handle bulky assemblies and thick materials without restriction.

Extended Stitch Capability

A maximum stitch length of 9mm allows for versatility across applications such as awnings, bags, and heavy fabric products.

Applications

• Upholstery & furniture manufacturing
• Automotive interiors (seats, mats, panels)
• Canvas, tarps & awnings
• Bags, straps & webbing
• Leather goods & industrial textiles

Technical Specifications

• Application: Medium to Heavy Materials
• Max Sewing Speed: Up to 2,500 SPM
• Needle System: 135x17
• Needle Gauge: 1/4" standard (other gauges available)
• Max Stitch Length: 9mm (forward & reverse)
• Presser Foot Lift: 16mm (knee), 9mm (hand)
• Thread Range: TEX 40 – TEX 210
• Hook: Horizontal axis, double-capacity hook
• Feed Mechanism: Compound rectangular feed
• Tension System: Dual tension
• Lubrication: Fully automatic lubrication

Why Choose the TN-1560?

The TN-1560 is built for shops that need reliable double-needle output with industrial-level feeding power. It bridges the gap between versatility and heavy-duty performance—making it an excellent choice for operations that work across multiple material types without sacrificing stitch quality.

Whether you're running production upholstery, canvas work, or leather assembly, this machine delivers the durability and consistency expected from a Titan industrial platform.

What’s Included

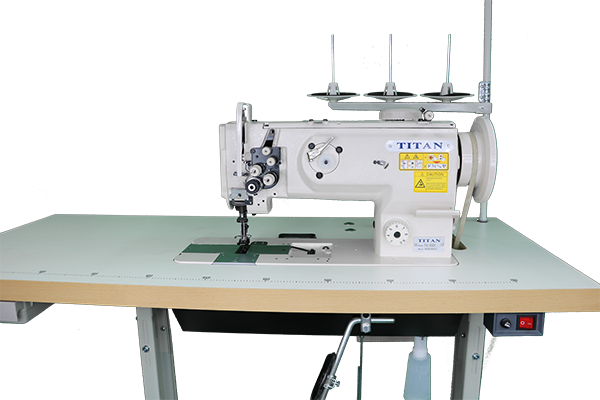

Fully laminated plywood tabletop with rubber trim

Titan Deluxe 2.0 T-stand with locking wheels

TN-750W Needle positioning Servo Motor

Drawer with accessories (oil, tools, manuals)

LED light (TN-30)

Full technical support (phone, email, video)

The Titan Advantage

Every TN-1560 is assembled, calibrated, and fully tested in Canada to ensure reliable, production-ready performance right out of the box.
