TN-1510L-25H Long arm walking foot (HIGH VERSION)

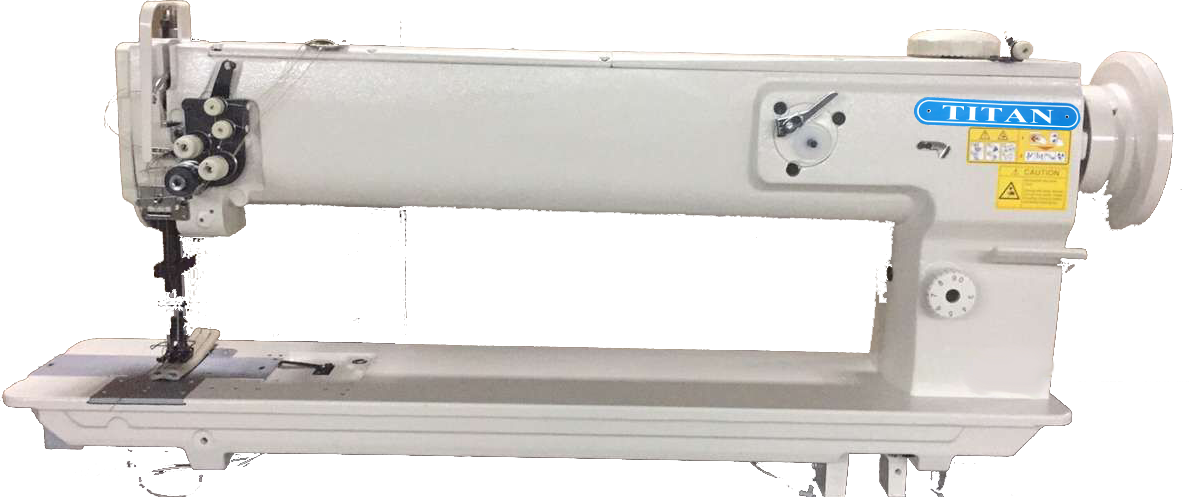

Titan TN-1510L-25H

Extra Long Arm Heavy-Duty Walking Foot Sewing Machine
Maximum Reach. Precision Control. Built for Oversized Work.

The Titan TN-1510L-25H is an extra long-arm, heavy-duty single-needle walking foot sewing machine engineered for large-scale materials, extended seam runs, and high-output industrial environments. Built on the proven 1510-class platform, this model features a massive 25” extended arm with high arm clearance, delivering exceptional workspace for handling oversized panels without compromising stitch precision.

Designed for upholstery, automotive interiors, marine fabrication, and industrial textile production, the TN-1510L-25H offers unmatched reach while maintaining the control and versatility of a single-needle system—making it ideal for large-format work where maneuverability and accuracy are critical.

Key Features

25” Extra Long Arm / High Arm Design
Provides maximum working area for oversized panels, long seam runs, and bulky assemblies. Ideal for tarps, tents, covers, and large upholstery components.

Single Needle Precision Control
Delivers flexibility for detailed stitching, curves, and variable seam paths—perfect for custom fabrication and high-precision work.

Compound Walking Foot Feed System
Ensures consistent, even feeding across multiple layers, preventing material shifting and maintaining stitch quality on heavy assemblies.

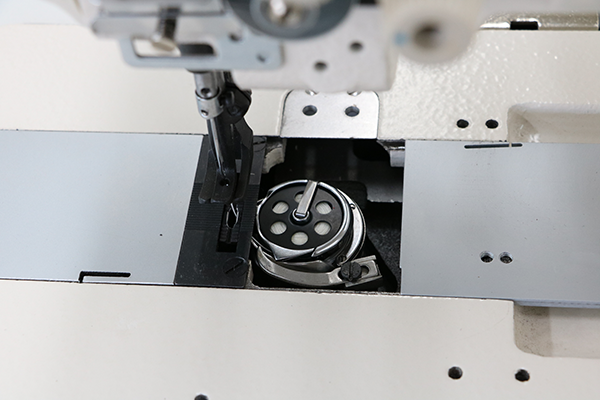

Large Capacity Hook (Big Bobbin)
Reduces bobbin change frequency and supports heavier thread sizes, improving efficiency during long production runs.

Adjustable Walking Foot Climbing Mechanism
Easily adapts to varying material thickness, allowing smooth transitions over seams and layered sections without drag.

High Presser Foot Lift
Up to 16mm lift enables easy handling of thick materials and multi-layer assemblies.

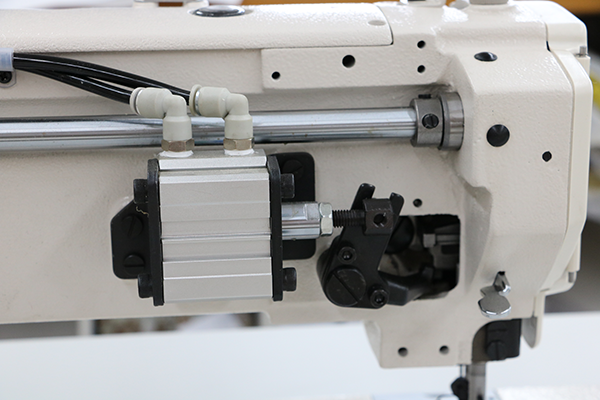

Air Foot Lift & Automatic Lubrication
Equipped with pneumatic foot lift and self-oiling system, improving operator efficiency while reducing maintenance and wear.

Applications

• Upholstery & large furniture production
• Automotive & marine interiors
• Tarps, tents & industrial covers
• Canvas, awnings & technical textiles
• Leather goods & heavy fabric assemblies
• Large-format fabrication and contract sewing

Technical Specifications

• Application: Medium to Heavy Materials
• Arm Length: 25” Extra Long Arm / High Arm Configuration
• Max Sewing Speed: Up to 2,000 SPM
• Needle System: 135x17 (DPx17)
• Max Stitch Length: Up to 9mm (forward & reverse)
• Presser Foot Lift: 16mm (air/knee), 9mm (hand)
• Thread Range: TEX 40 – TEX 210
• Hook: Large capacity hook (big bobbin)
• Feed Mechanism: Compound rectangular feed
• Lubrication: Automatic self-oiling system

Why Choose the TN-1510L-25H?

The TN-1510L-25H is built for operations where maximum workspace is non-negotiable. Compared to the 18” platform, the 25” arm dramatically improves material handling, reduces repositioning, and increases efficiency on large projects.

For shops producing oversized textile products, long seam assemblies, or large upholstery components, this machine eliminates the limitations of standard arm machines—while still offering the precision and flexibility of a single-needle system.

If your work is getting bigger, heavier, or more complex, the 25H platform is the step up.

What’s Included

• Fully laminated plywood tabletop with rubber trim
• Titan Deluxe 2.0 T-stand with locking wheels
• TN-750W Needle Positioning Servo Motor
• Drawer with accessories (oil, tools, manuals)
• LED light (TN-30)
• Full technical support (phone, email, video)

The Titan Advantage

Every Titan TN-1510L-25H is assembled, calibrated, and fully tested in Canada to ensure consistent, production-ready performance right out of the box.
