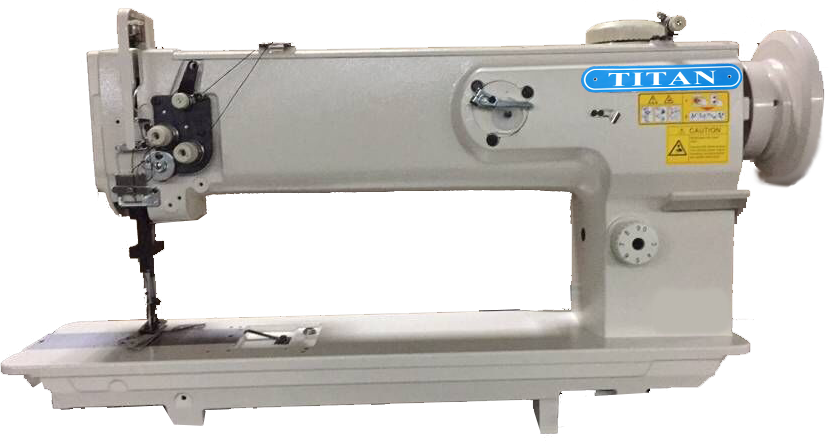

TN-1510L18H Long arm walking foot (HIGH VERSION)

Titan TN-1510L-18H

Long Arm Heavy-Duty Walking Foot Sewing Machine

Extended Reach. Precision Control. Built for Large-Scale Work.

The Titan TN-1510L-18H is a heavy-duty, long-arm single-needle walking foot sewing machine engineered for handling large materials, bulky assemblies, and precision-driven industrial applications. Built on the proven 1510-class platform, this model features an 18” extended arm with high arm clearance, providing operators with the workspace needed for oversized projects while maintaining excellent stitch accuracy and control.

Designed for upholstery, automotive interiors, marine work, and industrial textile fabrication, the TN-1510L-18H offers the versatility of a single-needle machine with the added advantage of extended reach—making it ideal for detailed work on large panels where maneuverability matters.

Key Features

18” Long Arm / High Arm Design
Provides an expanded working area for large panels, long seams, and bulky assemblies. Ideal for cushions, tarps, covers, and oversized fabric handling.

Single Needle Precision Sewing
Offers maximum control for detailed stitching, tight corners, and variable seam work—perfect where flexibility is required over fixed gauge stitching.

Compound Walking Foot Feed System
Ensures even material feeding across multiple layers, preventing shifting and maintaining consistent stitch quality on heavy materials.

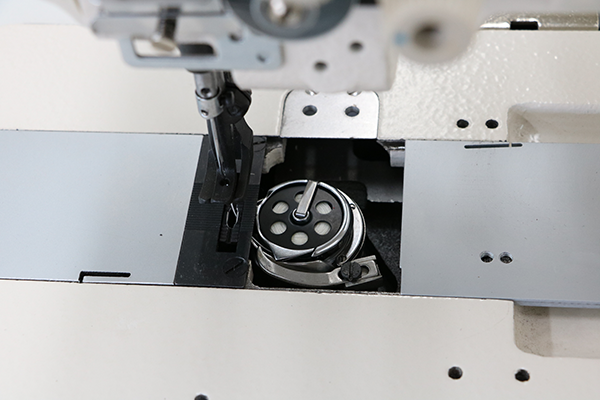

Large Vertical Axis Hook (High Capacity)
Supports heavier thread sizes and reduces bobbin change frequency, improving productivity on long runs.

Adjustable Walking Foot Climbing Mechanism
Allows easy adjustment for varying material thickness, reducing drag and ensuring smooth transitions over seams and layered sections.

High Presser Foot Lift
Up to 16mm lift enables easy handling of thick assemblies and multi-layer materials.

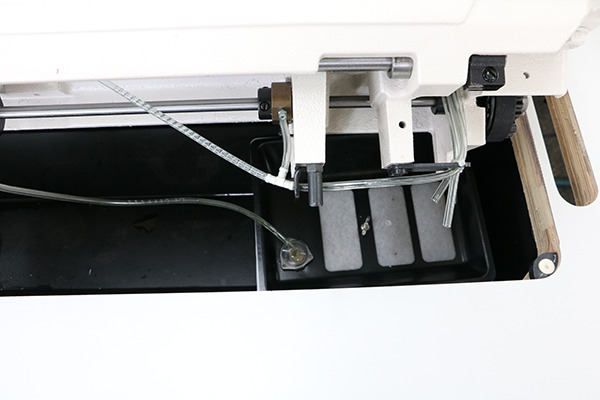

Air Foot Lift & Automatic Lubrication
Equipped with a pneumatic foot lift and self-oiling system for improved efficiency, reduced wear, and lower operator fatigue.

Applications

• Upholstery & furniture manufacturing
• Automotive & marine interiors
• Tarps, tents & covers
• Canvas, awnings & industrial textiles
• Leather goods & heavy fabric assemblies
• Custom fabrication requiring precision control

Technical Specifications

• Application: Medium to Heavy Materials
• Arm Length: 18” Long Arm / High Arm Configuration
• Max Sewing Speed: Up to 2,000 SPM
• Needle System: 135x17 (DPx17)
• Max Stitch Length: Up to 9mm (forward & reverse)
• Presser Foot Lift: 16mm (air), 9mm (hand)
• Thread Range: TEX 40 – TEX 210
• Hook: Large vertical axis hook (high capacity)
• Feed Mechanism: Compound (needle feed + walking foot + bottom feed)
• Lubrication: Automatic self-oiling system

Why Choose the TN-1510L-18H?

The TN-1510L-18H is ideal for operators who need the reach of a long-arm machine but prefer the flexibility and precision of a single-needle setup. Unlike dual-needle machines, it allows for greater control when working on complex shapes, variable seam paths, and custom fabrication.

If your workload involves large materials but demands accuracy over fixed parallel stitching, this machine delivers the perfect balance of space, control, and industrial durability.

What’s Included

• Fully laminated plywood tabletop with rubber trim
• Titan Deluxe 2.0 T-stand with locking wheels
• TN-750W Needle Positioning Servo Motor
• Drawer with accessories (oil, tools, manuals)
• LED light (TN-30)
• Full technical support (phone, email, video)

The Titan Advantage

Every Titan TN-1510L-18H is assembled, calibrated, and fully tested in Canada to ensure consistent, production-ready performance right out of the box.
