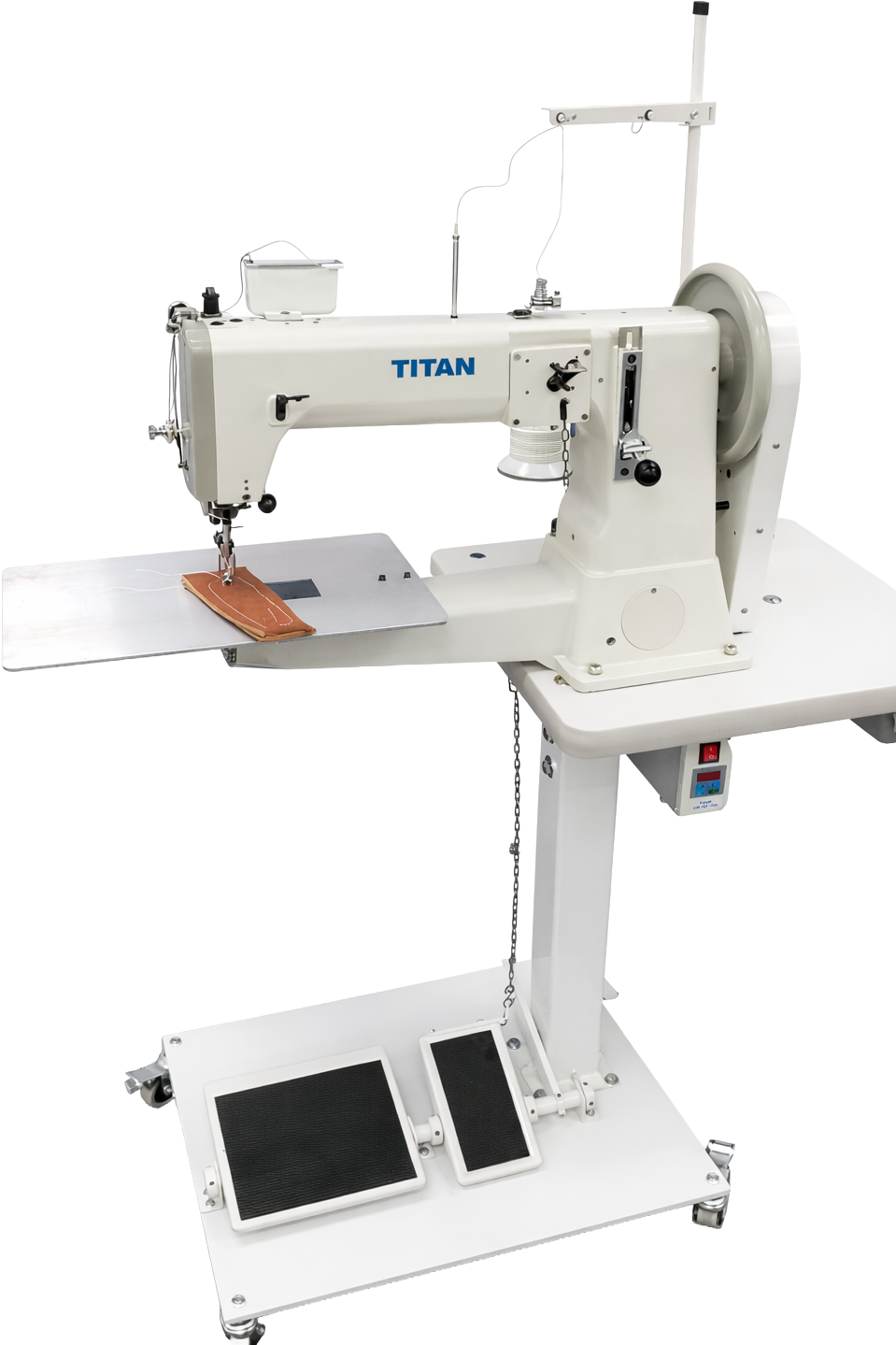

Titan TN-441 Extra Heavy Duty Cylinder arm sewing machine

The Titan TN-441 is a premium extra heavy-duty cylinder arm sewing machine designed for demanding applications where power, penetration, and stitch consistency are critical. Built on the legendary 441-class platform, this machine is purpose-built for sewing thick leather, webbing, and multi-layer heavy materials with ease.

Ideal for professionals working in leathercraft, saddlery, upholstery, and industrial textile production, the TN-441 delivers unmatched feeding performance and stitch reliability on even the toughest jobs.

Key Features

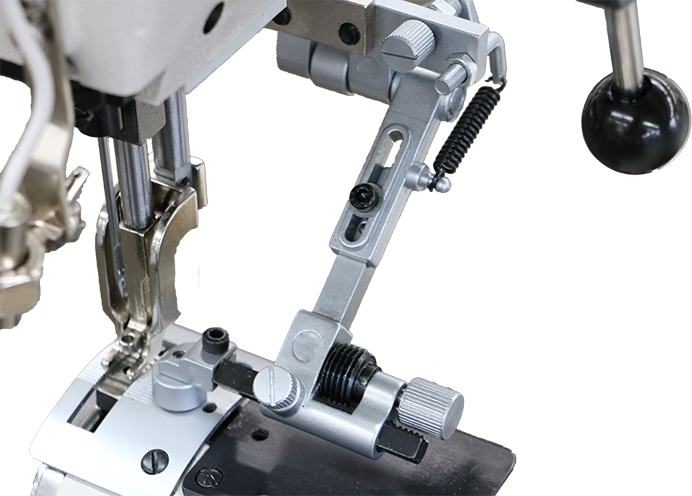

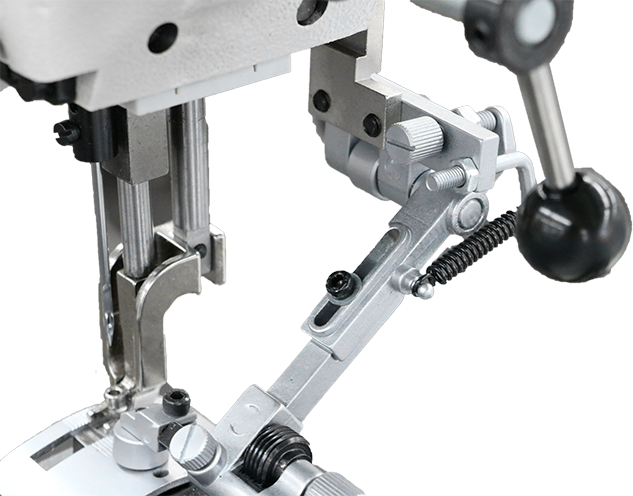

Triple Feed Walking Foot System

The TN-441 utilizes a compound feed (needle feed + walking foot + bottom feed) system to ensure consistent material feeding without slippage—especially critical when working with layered or uneven materials.

Cylinder Arm Design

The extended cylinder arm allows easy handling of tubular and three-dimensional products such as bags, boots, belts, and harnesses, while providing ample working clearance.

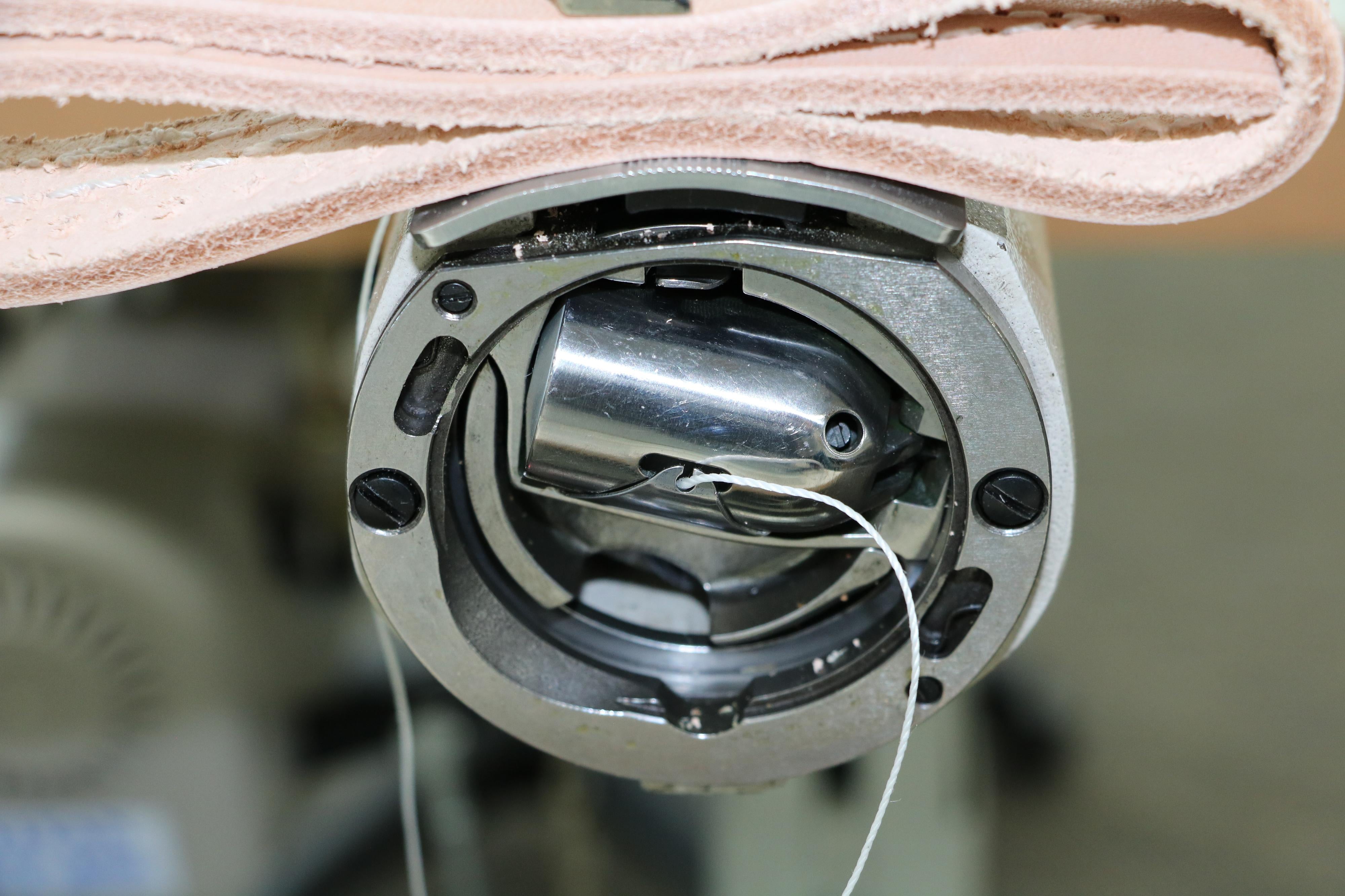

Extra Large Shuttle Hook

Equipped with a large barrel-style shuttle hook, the TN-441 supports heavy thread sizes and reduces bobbin changes—maximizing productivity on long runs.

High Presser Foot Lift

With up to 20 mm foot lift, operators can easily position and remove thick assemblies without struggle.

Heavy Material Capability

Engineered to sew leather, canvas, webbing, vinyl, and synthetics, this machine handles demanding applications with clean, consistent stitch formation.

Applications

• Leather goods (belts, wallets, bags)
• Saddlery & harness manufacturing
• Upholstery & automotive interiors
• Industrial webbing & safety gear
• Footwear & heavy textile assemblies

Technical Specifications

• Machine Type: Cylinder Arm, 1-Needle Lockstitch
• Feed System: Compound Walking Foot (Triple Feed)
• Max Sewing Speed: Up to 800 stitches/min
• Max Stitch Length: Up to 11 mm
• Presser Foot Lift: Up to 20 mm
• Needle System: 794 (Nm 130 – 280)
• Thread Range: Heavy thread up to approx. #8 / Tex 400+
• Sewing Capacity: Up to ~3/4" (19 mm) material thickness
• Arm Clearance: ~420 mm working space

Why Choose the Titan TN-441

The TN-441 is built for operators who need maximum torque, consistent feeding, and industrial-grade durability. Whether you're producing high-volume leather goods or handling custom heavy assemblies, this machine delivers:

• Reliable stitch quality on thick materials
• Reduced downtime with large bobbin capacity
• Superior control on curves and complex shapes
• Long-term durability in production environments

Titan Advantage

Each Titan TN-441 is assembled, calibrated, and fully tested to ensure optimal performance out of the box—so you can focus on production, not setup.
