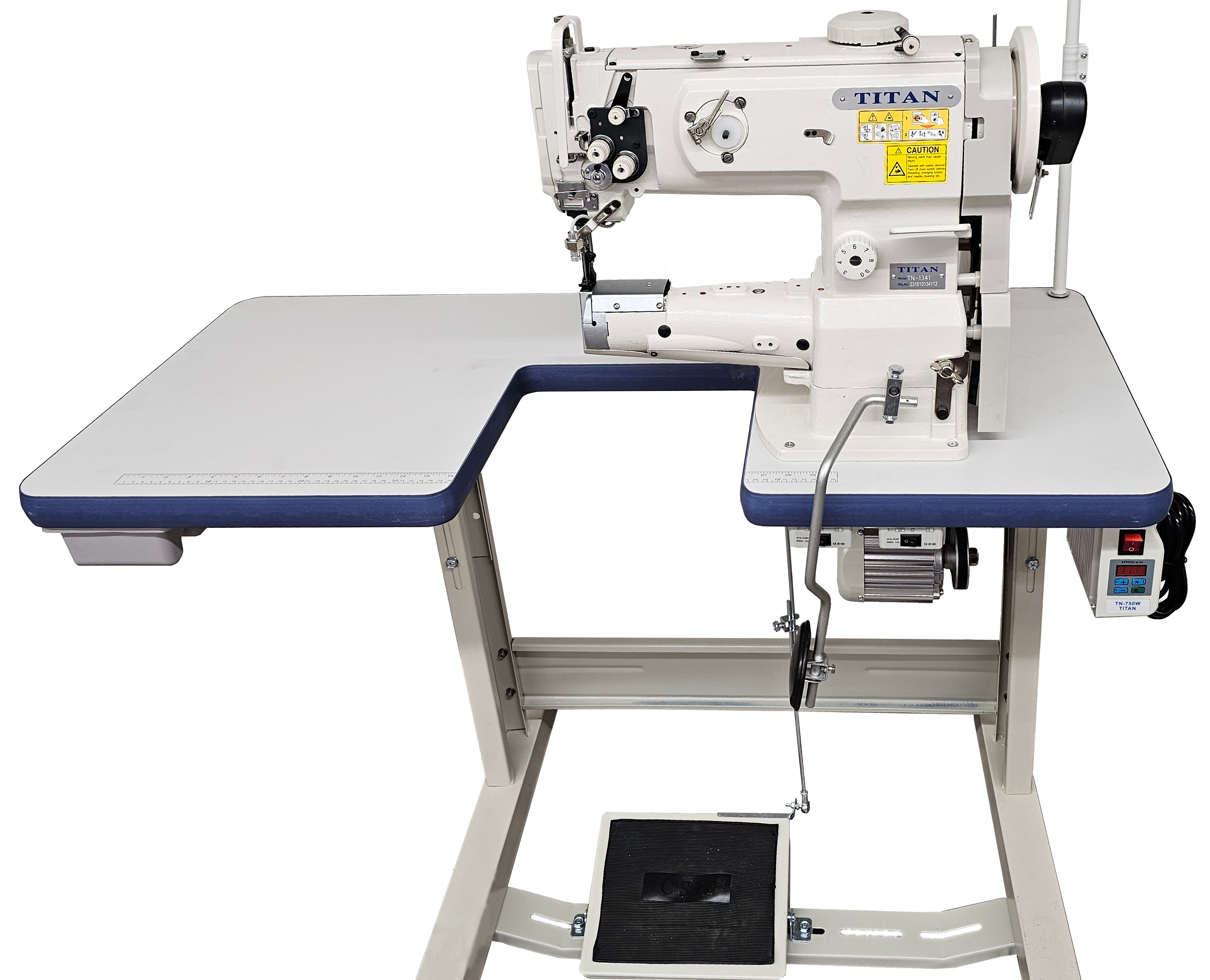

Titan TN-1341 Cylinder Arm Walking Foot Sewing Machine

Compact Cylinder Arm. Serious Capability. Built for Precision Leatherwork.

The Titan TN-1341 is a professional-grade cylinder arm walking foot sewing machine engineered for sewing medium to heavy-weight materials with precision and control. Designed for tight, hard-to-reach areas, this machine excels in applications where flatbed machines simply can’t perform.

Whether you're producing bags, belts, wallets, footwear, or cylindrical products, the TN-1341 delivers consistent stitch quality, strong material feeding, and reliable performance in demanding production environments.

Key Features

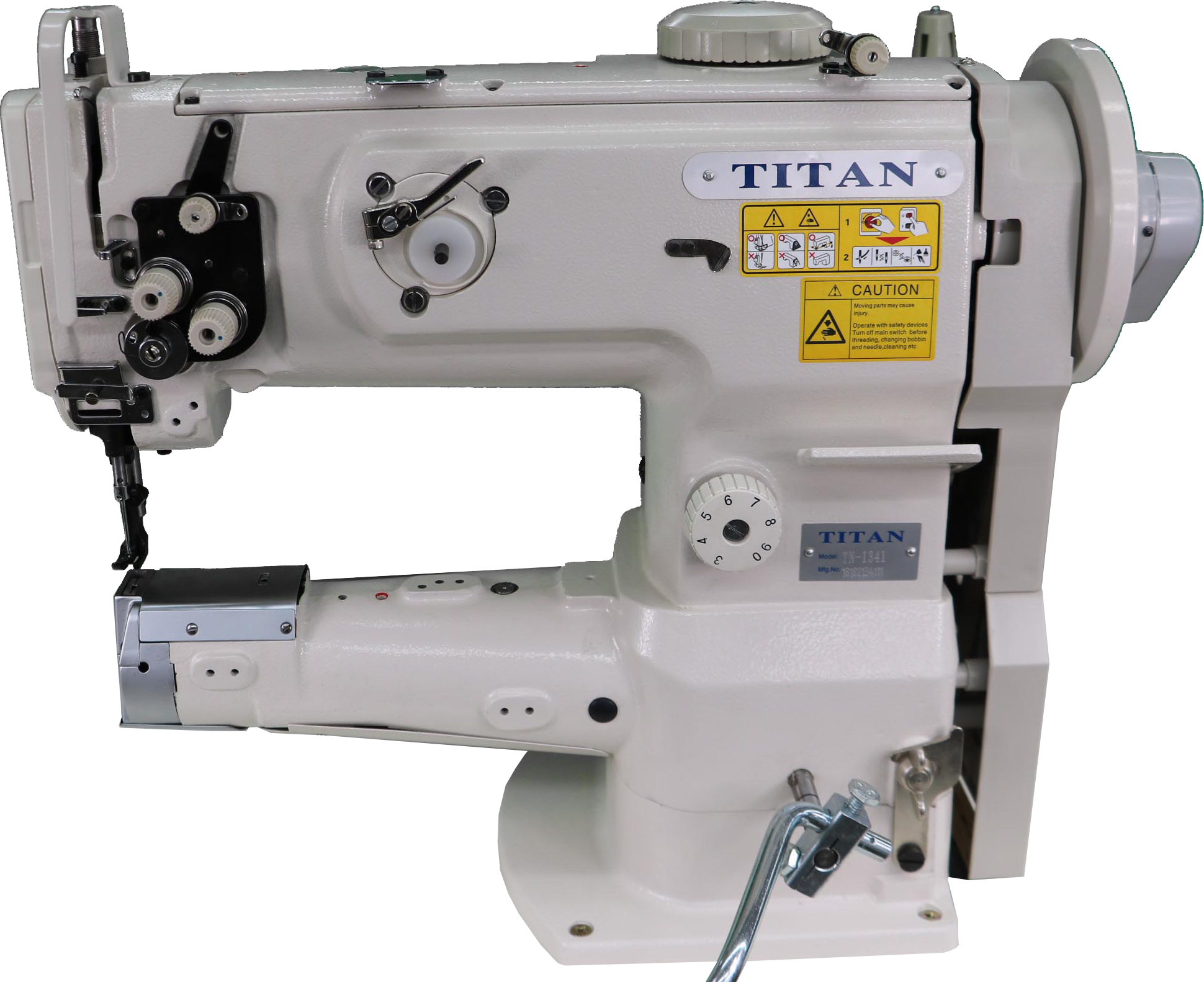

Cylinder Arm Design for Tight Access

The narrow cylinder arm allows operators to easily sew inside bags, tubular items, and curved assemblies, making it ideal for detailed leatherwork and product finishing.

Compound Walking Foot Feed System

Equipped with a triple feed system (needle feed + walking foot + bottom feed), the TN-1341 ensures smooth, even feeding across layered and difficult materials, eliminating slippage and stitch inconsistency.

Heavy-Duty Sewing Capability

Built to handle materials such as leather, vinyl, synthetics, canvas, and coated fabrics, this machine delivers reliable penetration and clean stitch formation across medium to heavy applications.

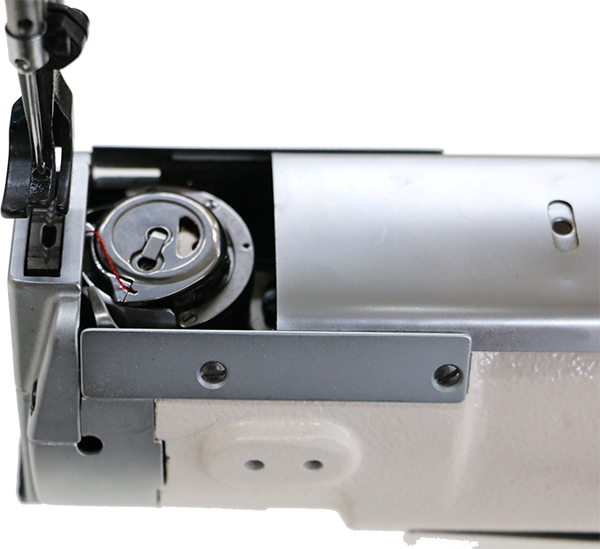

Large Capacity Bobbin System

The top-loading large capacity hook reduces downtime by allowing longer run times between bobbin changes—ideal for production workflows.

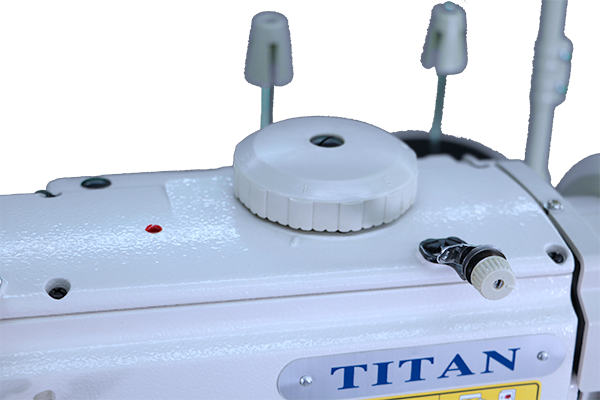

Dual Tension Control

The dual tension system provides enhanced control when working with heavier threads, improving stitch balance and consistency across varying materials.

High Foot Lift for Thick Materials

With up to 16mm foot lift, the TN-1341 easily accommodates thicker assemblies and layered products without compromising feed performance.

Ideal Applications

Leather goods (belts, wallets, bags)

Footwear and shoe components

Upholstery and automotive interiors

Cases, covers, and technical products

Cylindrical and hard-to-access sewing jobs

Technical Specifications

Max Sewing Speed: 2,000 stitches per minute

Max Stitch Length: 9mm (forward & reverse)

Needle Bar Stroke: 36mm

Presser Foot Lift: 16mm (knee), 9mm (hand)

Hook Type: Large capacity vertical axis hook

Needle System: DPx17

Thread Range: Tex 45 – Tex 210

Feed Mechanism: Compound walking foot

Stitch Adjustment: Dial control

What’s Included

Fully laminated plywood tabletop with rubber trim

Titan Deluxe 2.0 T-stand with locking wheels

Drawer with accessories (oil, tools, manuals)

LED light (TN-30)

Full technical support (phone, email, video)

Why Choose the TN-1341?

The Titan TN-1341 fills the gap between flatbed walking foot machines and large cylinder arm units. It gives you:

Better access to tight sewing areas

Strong, even feeding on layered materials

Production-ready durability

Flexibility across multiple product types

If you’re producing bags, leather goods, or cylindrical products, this is one of the most versatile machines in its class.

The Titan Advantage

Every TN-1341 is assembled, calibrated, and fully tested in Canada to ensure reliable, production-ready performance right out of the box.
