Titan TN-650 BL Compound walking foot, with needle feed, Large bobbin and oil bath

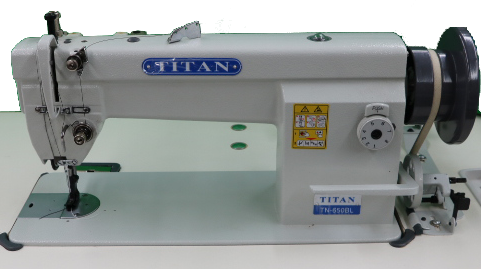

Titan TN-650BL

Entry-Level Heavy-Duty Walking Foot Sewing Machine

Reliable Feeding. Simple Operation. Built to Get You Started.

The Titan TN-650BL is a dependable, entry-level compound walking foot sewing machine designed for shops working with medium to heavy materials. Built with a true compound feed system (alternating presser feet + needle feed + feed dog), this machine ensures smooth, consistent feeding across thick and layered materials.

Engineered as a cost-effective solution for upholstery, canvas, and general heavy-duty sewing, the TN-650BL delivers the core performance of industrial walking foot machines—without unnecessary complexity.

Key Features

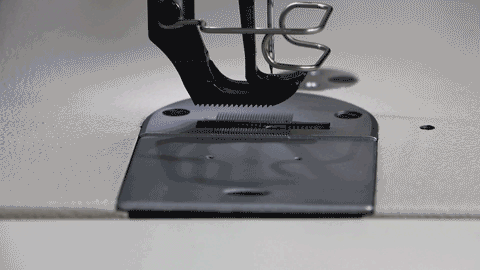

Compound Walking Foot Feed System

Equipped with a full compound feed system, the TN-650BL provides consistent material handling across multiple layers, reducing shifting and improving stitch quality on thick assemblies.

Large Capacity Bobbin

The large bobbin reduces downtime by allowing longer run times between thread changes—ideal for production environments.

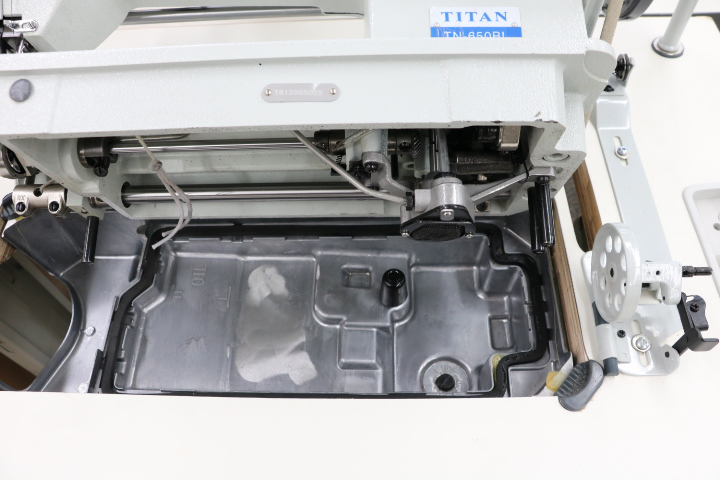

Oil Bath Lubrication System

A fully lubricated oil bath system ensures smooth operation, reduced wear, and long machine life with minimal maintenance.

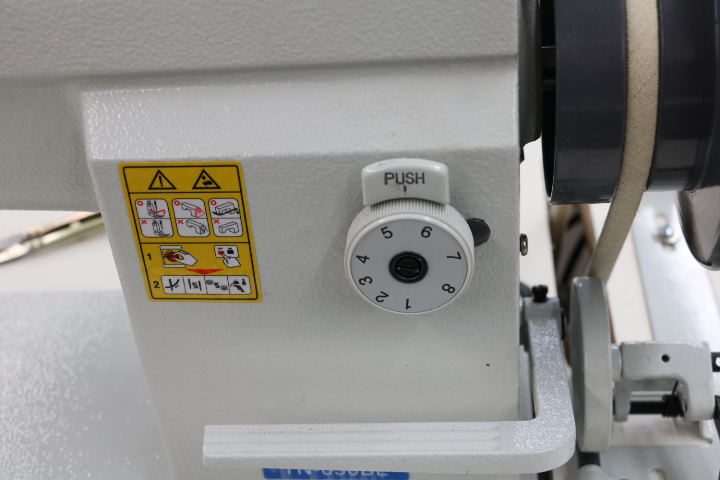

Locking Stitch Length

Maintains consistent stitch length during operation, improving accuracy and repeatability across production runs.

Servo Motor Package

Supplied complete with an energy-efficient servo motor, providing quiet operation, speed control, and improved operator precision.

Ready-to-Run Setup

Includes table, stand, lighting, and optional needle positioning—making it a complete, production-ready solution out of the box.

Applications

Upholstery & furniture repair

Canvas, tarps & awnings

Horse blankets & outdoor gear

Light leather work

General medium-to-heavy sewing applications

Technical Specifications

Application: Medium to Heavy Materials

Max Sewing Speed: Up to 2,000 SPM

Needle System: 135x17 (DPx17)

Max Stitch Length: Up to 8mm (forward & reverse)

Presser Foot Lift: 13mm (knee), 6.5mm (hand)

Thread Range: TEX 45 – TEX 135

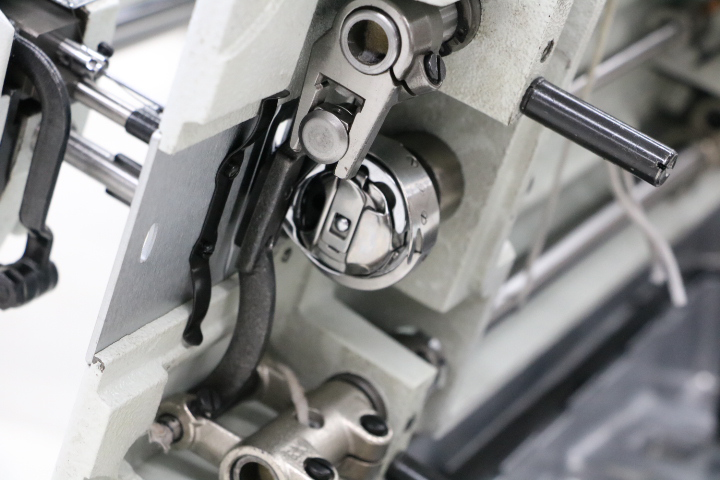

Hook: Horizontal-axis, double-capacity hook

Feed Mechanism: Compound walking foot (triple feed)

Lubrication: Oil bath / automatic lubrication

Motor: 750W energy-saving servo motor

Power Requirement: 110V

Why Choose the TN-650BL?

The TN-650BL is built for shops that need a straightforward, reliable walking foot machine without stepping into higher-cost platforms. It’s the ideal entry point into compound feed sewing—offering the core functionality required for upholstery, canvas, and light leather applications.

What’s Included

Fully laminated plywood tabletop with rubber trim

Titan Deluxe 2.0 T-stand with locking wheels

Drawer with accessories (oil, tools, manuals)

LED light (TN-30)

Full technical support (phone, email, video)

The Titan Advantage

Every TN-650BL is assembled, calibrated, and fully tested in Canada to ensure reliable, production-ready performance right out of the box.
