The TN-28BL-30 is the perfect machine for sewing heavy to extra heavy weight materials such as canvas, leather, vinyl, synthetics, rubberized, laminated and coated products.  The TN-28BL-30 is perfect for upholstery, tarps, tents, awnings, truck covers and any heavy bulky products.  The 30 inch arm helps allow the fabric to clear through easily, while the compound walking foot and the positive feeding action will evenly feed the materials with ease.   The machine is equipped with an air assist foot lift to manage lifting the foot with little effort.  The reverse is controlled by a foot pedal to allow free hand movement with both hands.



FEATURES:

  • 30 Inch Long Arm

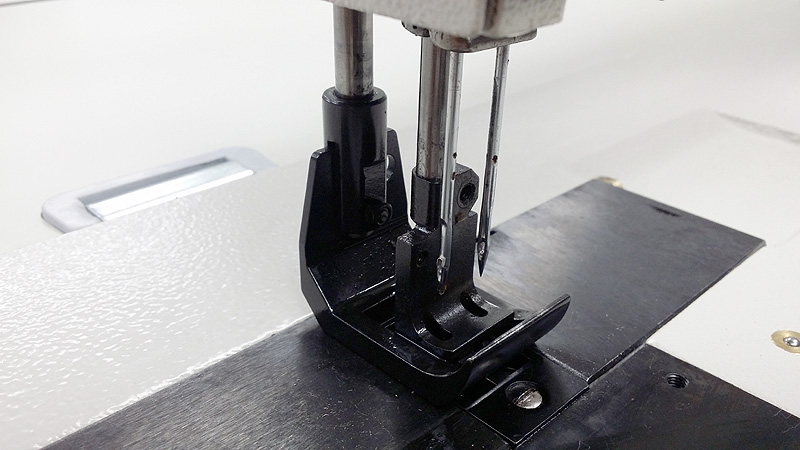

  • Compound Feed and Walking Foot Mechanism assures even feeding of materials
  • Air Foot Lift
  • Reverse Feed operated by foot control
  • Built-In Bobbin Winder
  • Front Handwheel allows for easy rotation of the needles
  • EXTRA LARGE vertical axis hooks
  • Safety Clutch to help control timing and damage to shuttles.

TN-28BL-30

C$11,450.00Price
    • APPLICATION:  For Heavy to EXTRA HEAVY Materials
    • MAX SEWING SPEED:  1,200 SPM
    • MAX STITCH LENGTH:  10 mm Forward/Reverse
    • NEEDLE BAR STROKE:  47.3mm
    • FOOT LIFT:  24mm by Knee (Air Lift System), 20mm by Hand
    • THREAD TAKE UP:  Slide Type
    • HOOK:  Vertical Axis EXTRA LARGE Capacity Hook
    • THREAD: TEX70~TEX415
    • Fully laminated plywood top with rubber trim
    • 750W (1HP) Brushless servo motor
    • Speed Reducer (OPTIONAL)
    • Large 2.0mm K leg with braces
    • Drawer with accessories (oil, bobbins, tools, needles, instruction/parts manual)
    • LED light (TN-30)
    • Full tech support (Phone/email/video call)
